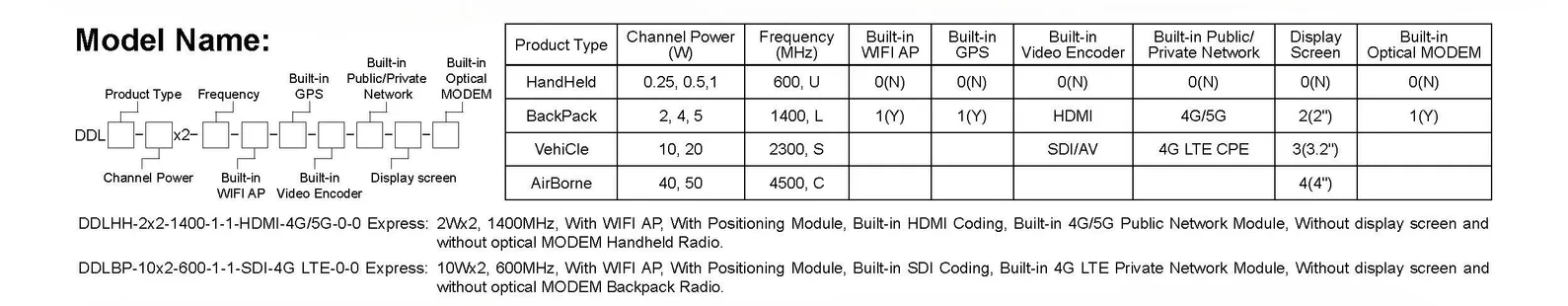

| General |
| SDR Platform, Waveform |
9363 or 9361+7Z020, Mobile Network MANET |
| MIMO Technology |
Space-time coding,Receive Diversity,TX /RX beamforming |
| Receive Sensitivity |
-103dBm@5MHz BW |
| Channel Bandwidth |
1.25/2.5/5/10/20MHz Broadband, 250k/500k/1MHz narrowband setting |
| Data Rate |
1-70Mbps(20MHz BW) Broadband, 50-1000kbp narrowband Adaptive, QoS |
| Modulation Mode |
TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional) |
RF Output Power
(Support TPC, transmission power control) |
0.25Watts x2
0.5(1)Watts x2
1Watts x2
2Watts x2
4(5)Watts x2
10(20)Watts x2 |
Single Hop
Communication Distance |
Air to G. 3-15KM, 0.25Watts x2; 10-30KM, 0.5Watts x2; 20~50KM, 1Watts x2; 50~100KM, 2Watts x2; 100~150KM, 4Watts x2; 100~200KM, 5Watts x2; 150~300KM, 10Watts x2; 250~500KM, 20Watts x2 |
| Mode of Communication |
Decentralized point-to-point, point-to-many and many-to-many communications with cross-connection, supporting small-scale (within 8 nodes) MESH networking with dynamic routing and multi-hop relay |
| Single Hop Delay |
Average 10mS(20MHz BW) |
| Encryption |
DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |

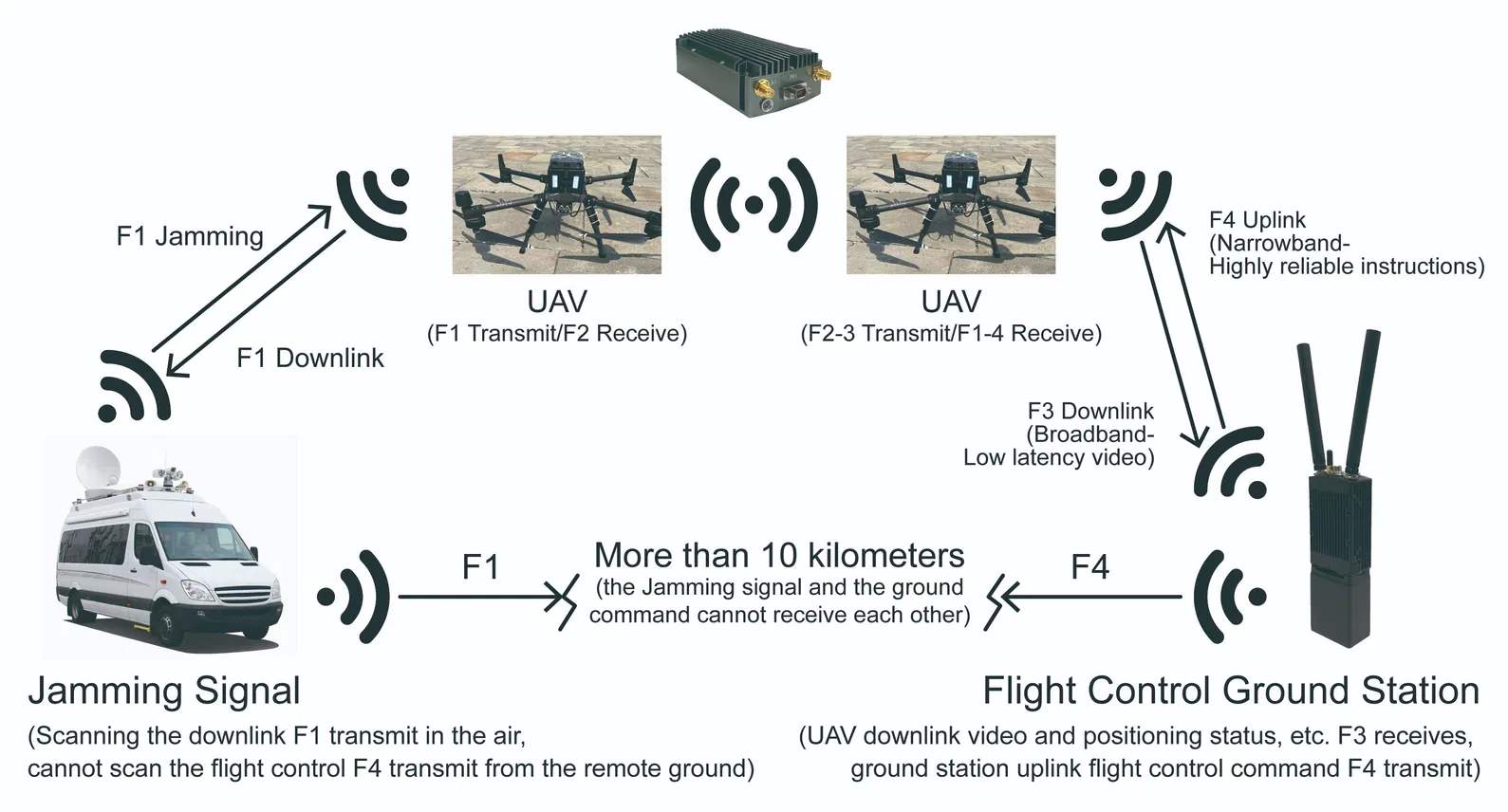

| Anti-Jamming Mode |
Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional |
| Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio,
upload and download traffic, node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
| Others |
The boot time is less than 28 seconds, and the network access/update/switching time is less than 1 second.
The network size is less than 8 nodes.
Automatic carrier tracking, adapting to Doppler frequency shift of ±6kHz frequency deviation, supporting mobile communications at speeds above 7200 kilometers per hour (Mach 6, 2000 meters per second). |
| Bands(300M-6GHz customizable. Same frequency or different frequency of 2T2R at single band, or 1T2R at dual-band selectable/smart change) |
| BAND |
Frequency range |
| VHF/UHF |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz |
| L Band |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*GHz |
| S Band |
2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz |
| C Band |
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz |
| |
(Note: RF power, Dimensions, Weight is different) |
| MIIT |
336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz |
| Environmental |
| Operation Temperature |
-40ºC ~+80ºC |
| Protection Level |
IP66, IP67/IP68 Customized |
| Mechanical |
| Size/Weight |

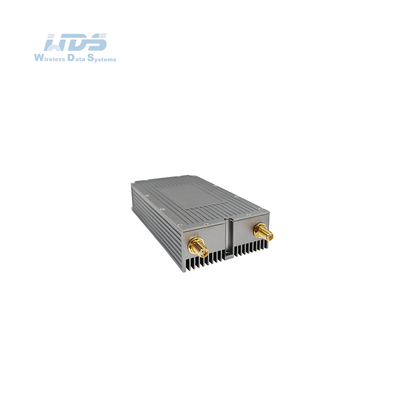

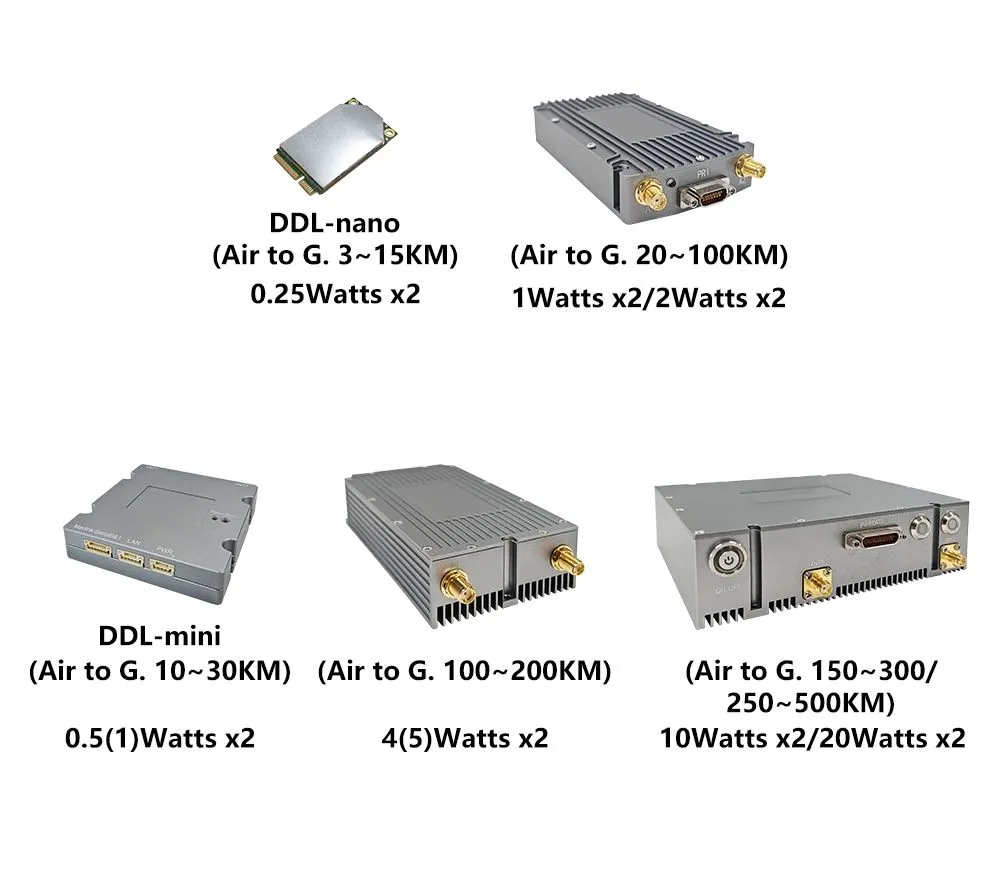

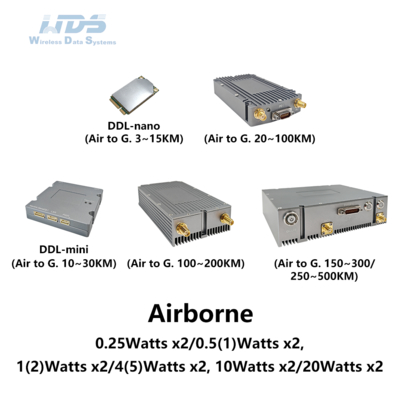

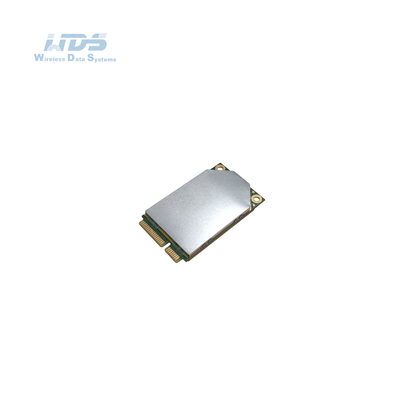

5.1x3.0x0.7cm/14g, 0.25Watts x2 Airborne Radio, DDL-nano
6.2x4.8x1.1cm/46g, 0.5(1)Watts x2 Airborne Radio, DDL-mini
6.0x5.8x1.3cm/60g, 0.5(1)Watts x2 Airborne Radio, DDL-mini

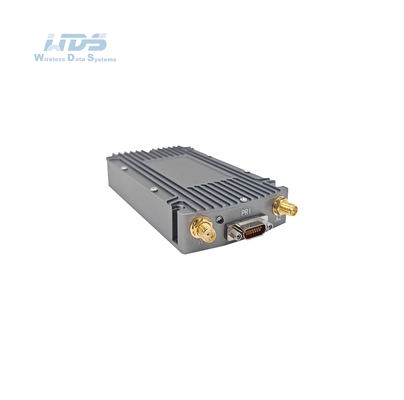

11.7x6.2x2.0cm/160g, 1(2)Watts x2 Airborne Radio-Iron Gray
13.8x6.2x2.7cm/225g, 4(5)Watts x2 Airborne Radio-Iron Gray

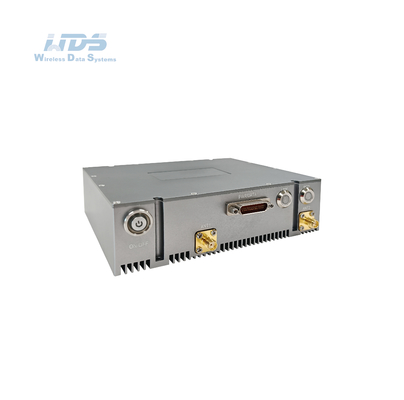

12.8x13.4x3.8cm/598g, 10Watts x2/20Watts x2 Airborne Radio-Iron Gray
14.2x14.0x5.0cm/962g, 10Watts x2/20Watts x2 Airborne Radio-Black |
| Installation/Color |
4 Mounting Holes/Black,Iron Gray,Army Green Optional |
| Power |
| Supply Voltage |
3.5-5VDC, 0.25Watts x2, DDL-nano
9-32VDC, 0.5Watts x2, DDL-mini
9-39VDC, 1Watts x2
12-36VDC, 2Watts x2/4(5)Watts x2
18-32VDC ,10Watts x2/20Watts x2 |
| Power consumption |
Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts x2, DDL-nano
Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2, DDL-mini
Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2
Operation 2-4A/Standby 0.5-0.7A@12V, 4(5)Watts×2
Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2
Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2 |
| Power Selection |
Power Supply by Main Cable |
| Interface |
| Basic interface |

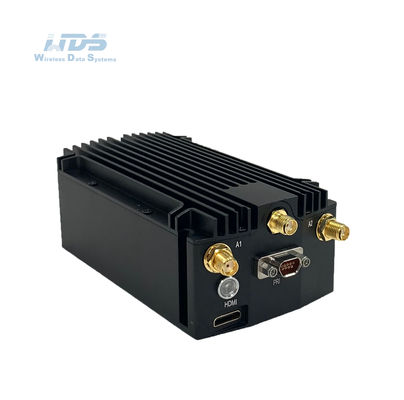

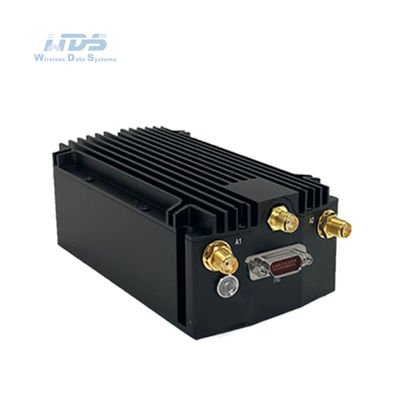

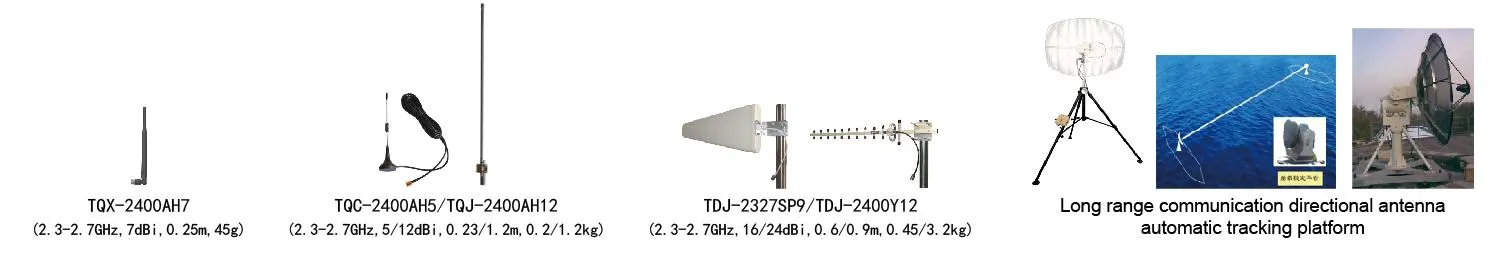

2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
Push to talk/
Auxiliary interface |
MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
| Network Extension Optional |
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional |
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator |
Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected
Blinking green - Voice PTT is down |
| RSSI Link Indicator |
Steady green - The link quality is excellent
Steady blue - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor or link is down |
Management Interface/
Control Interface |
Web-based network management/GUI, API for secondary development interface/SNMP |
