DDL Handheld Mesh Radio Communication Devices OEM

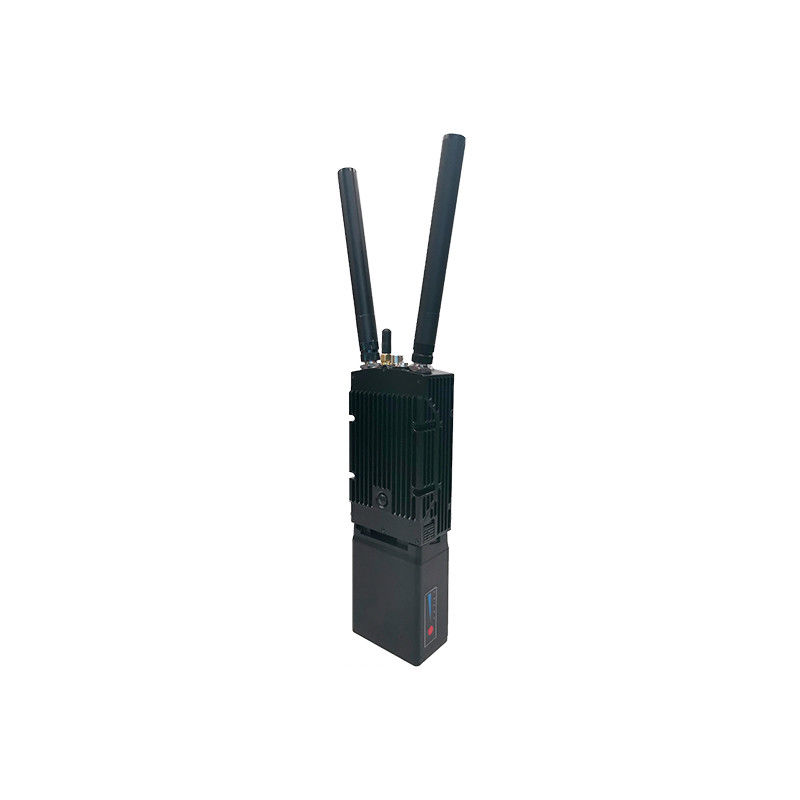

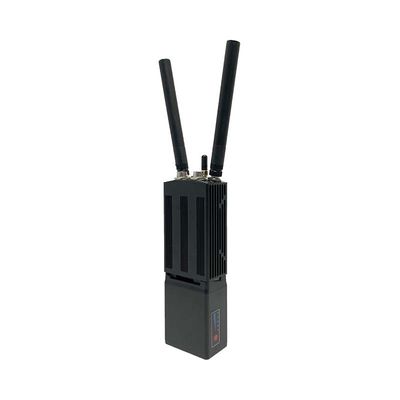

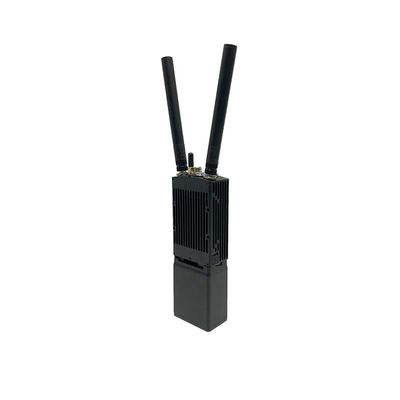

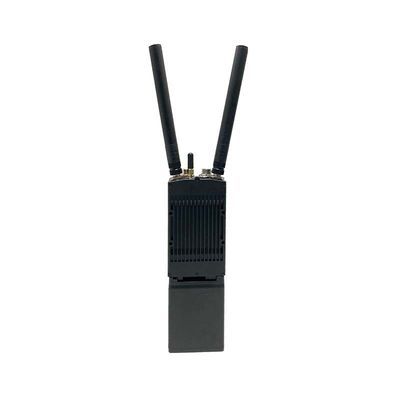

Large Image : DDL Handheld Mesh Radio Communication Devices OEM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WDS/Sinosun
Model Number:	DDL2x2-1400

Payment & Shipping Terms:

Price:	$2,450.00/sets >=1 sets
Supply Ability:	1000 Set/Sets per Month

Contact Now

DDL Handheld Mesh Radio Communication Devices OEM

Description

Type:

Airborne

Highlight:

DDL Handheld mesh radio

OEM mesh radio

DDL Handheld mesh communication devices

Upgrade Your Communication Game with DDL Handheld Radio Ideal in Need of Solutions

Product Overview

DDL Airborne Radio

The new DDL series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. DDL series based on SDR software defined radio platform with 2X2 MIMO, It adopts Beamforming, Maximal Ratio Combining (MRC), Maximal Likelihood(ML) algorithm, low density parity check (LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming. DDL series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.

Product Paramenters

Wireless Specifications
Frequency Range	320-450/450-550/550-700MHz,1000-1300/1300-1500MHz, 1.8-2.2/2.2-2.5GHz,4.4-5.0/5.0-6.0GHz,70M-6GHz Customized
Channel Bandwidth	1.25/2.5/5/10MHz Adjustable
Modulation Mode	COFDM, DSSS-CCK/BPSK/QPSK/16QAM/64QAM (Adaptive)
Throughput	70Mbps@10MHz/25Mbps@5MHz/10Mbps@2.5MHz/4Mbps@1.25MHz
Sensitivity	-102dBm@5MHz
Transmission Distance (line-of-sight)	over 100 km (2Watts x 2)
Transmission Power	2Watts x2
Networking Capabilities
Communication Mode	Point-to-point, point-to-multipoint and multipoint-to-multipoint, Reapter
Network Topology	Centerless of no-master/slave to MPtoMP
Wireless Protocol	HTDMA
Network Protocol	IPv6,QoS,DNS,HTTPS,IP,ICMP,NTP,DHCP,VLAN
Encryption	DES56/AES128/AES256
Anti-jamming	Intelligent frequency selection/Autonomous frequency hopping
Mobility	Support movement speed greater than 200 km/h
Transmission Delay	Less than 10 ms
System Parameters
Interface	Network port (IP/WiFi), Serial port (232/485/422/TTL,Sbus/USB/Bluetooth),Audio port (MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G LTE/Satellite/Fibe
Video Interface	IP,HDMI/SDI,CVBS
Local/Remote Management	PC terminal Web browsing, Mobile APP: topology, node and link status, distance monitoring, whole network parameter configuration, software upgrade and other functions
System Upgrade	Support one-click upgrade, remote upgrade
Positioning Function	GPS/BDS
Power Supply	12-36VDC,2Watts×2
Power Consumption	Operation 1-2A/Standby 0.5-0.7A@12V,2Watts×2
Physical Properties
Operating Temperature	-40℃~ 80℃
Protection Level	IP65,IP66/IP67(Customized)
Size/Weight	19x6.8x3.8cm/769g

Performance:

400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP. Low power consumption. Tiny volume, lightweight structure, body building for UAV.

Advantages:

70Mbps high-speed, long-distance transmission

Intelligent frequency selection/autonomous frequencyhopping anti-jamming

Point-to-point,Point-to-multipoint,Multipoint-to-multipoint

Multiple network + multiple serial

Compact/harsh environment applications

Hardware Interfaces

1:RF Channels 1-2 Connectors [TNC Female]

2:Radio switch
3:Power (EB Version Only, 9-24V), Ethernet, and Serial Port Connector [LF10WBRB-12PD]
4:Link Status Indicator&RSSI Link Indicator
5:WiFi Antenna
6:Auxiliary Interface[LF10WBRB-12SD]

Company Profile

Shenzhen Sinosun Technology Co.

---Leading Manufacturer of Industrial Wireless Data Transmission

Rich Products Available

Leading Performance

Professional and Efficient Service

www.sinosun.cn

Product packaging
