| SDR Platform, Waveform | 9363 or 9361+7Z020, Mobile Network MANET |
| MIMO Technology | Space-time coding,Receive Diversity,TX /RX beamforming |
Frequency
(70M-6GHz customizable) | UHF(360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz)/
L Band(1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.2*GHz)/
S Band(2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz)/
C Band(4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*GHz) |
| Channel Bandwidth | 250k/500k/1MHz(Dual Antenna) |
| Sensitivity | -117dBm@250KHz |
| Modulation Mode | BPSK/QPSK/16QAM (Adaptive), OFDM(Dual Antenna) |
| Airborne Data Rate | 50-250kbps@250kHz(Dual Antenna)
125-500kbps@500kHz(Dual Antenna)
250-1000kbps@1MHz(Dual Antenna) |
| Multi-access Mode | CSMA/TDMA |
| RF Channel | 1Tx+1Rx/2Tx+2Rx, TDD/FDD |
| Transmit Power | 4(5)/10/20/40(50)Watts(Dual Antenna) |
Single Hop
Communication Distance | 30-100 km (LOS), 1-30 km (Urban Area) |
| Work Mode | Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Dynamic routing/Multi-hop relay, Star/Line/Network/Hybrid |
| Connectors | Serial port (point-to-point bidirectional, point-to-multiple unidirectional)/ Network Port (unicast, multicast, broadcast)/Voice, Location (broadcast) |
| Single Hop Delay | Average 7mS (1MHz BW) |
| Encryption | DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
| Anti-Jamming Mode | Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode
optional |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, realtime display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
| Others | The startup time is less than 28 seconds, and the networkaccess/update/switchover time is less than 1 second.
There is no limit on the user capacity of a single system (256nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total transmission rate loss for more than three hops is less than 70%.
Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6Mach, 2000 meters per second). |
Network Size/
Multi-hop Capability | Single Network More Than 256 Nodes/15 Hops |
| Operation Temperature | -40℃ ~+80℃ |
| Protection Level | IP66, IP67/IP68 Customized |
Voltage/
Power Consumption | 12-36VDC/Operation 1-2A/Standby 0.5-0.7A@12V, 2/4(5)Watts x2
18-32VDC/Operation 3-6A/Standby 0.7-0.9A@16.8V, 10Watts x2
18-32VDC/Operation 6-7A/Standby 0.7-0.9A@20V, 20/40(50)Watts x2 |
| Power Selection | Power Supply by Twist-Lock Battery or Main Cable |

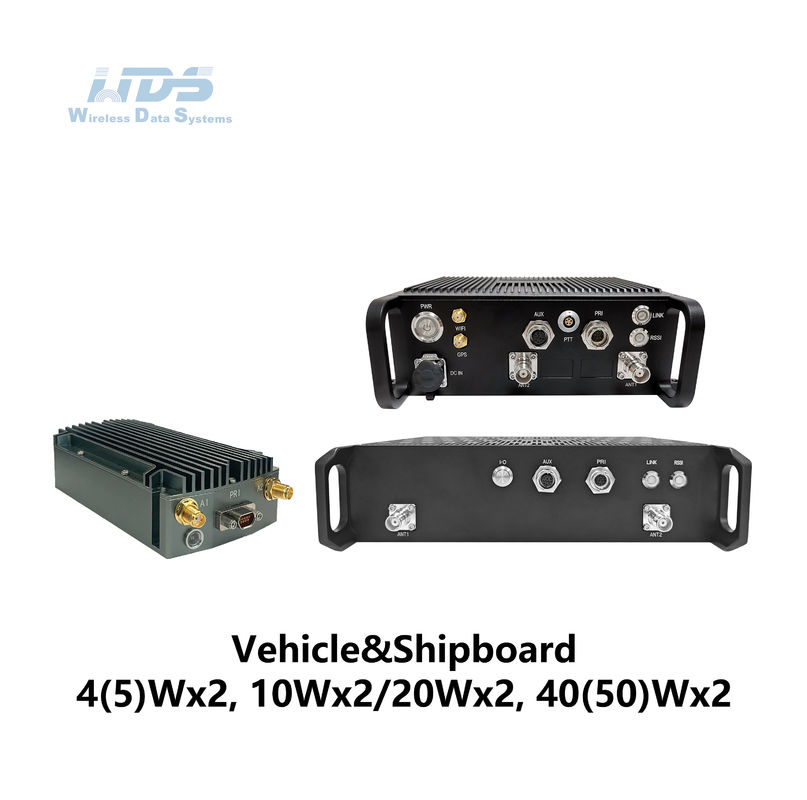

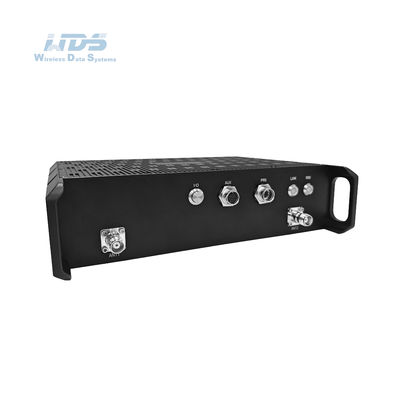

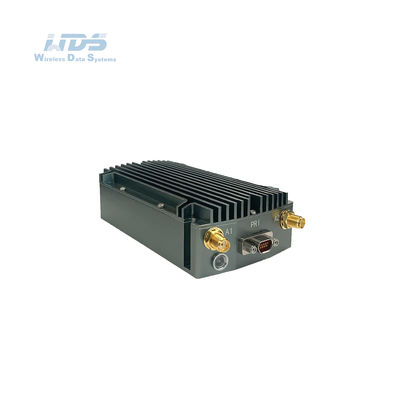

| Dimensions/Weight | 11.7x6.2x3.2cm/279g, 4(5)Wx2 Dual Antenna Vehicle&Shipboard
19.1x18.6x6.3cm/2.16kg, 10/20Wx2 Dual Antenna Vehicle&Shipboard
25.8x21.3x6.5cm/3.95kg, 40(50)Wx2 Dual Antenna Vehicle&Shipboard |

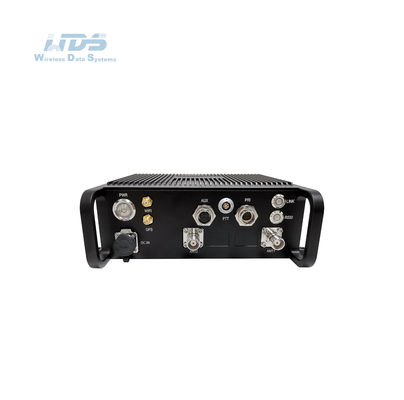

| Installation/Color | 4 Mounting Holes/Black, Iron Gray,Army Green Optional |
| Basic interface | 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
Push to talk/
Auxiliary interface | MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected
Blinking green - Voice PTT is down |
| RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP
|
