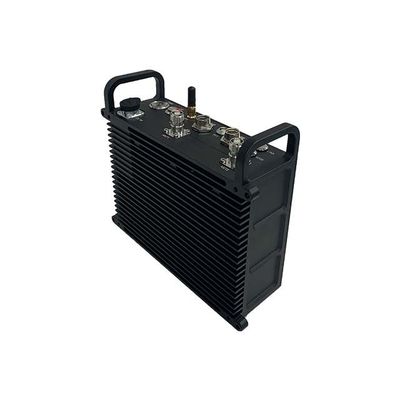

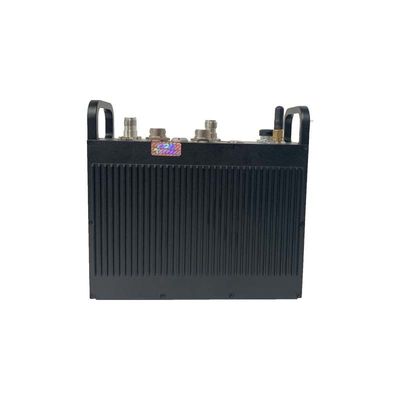

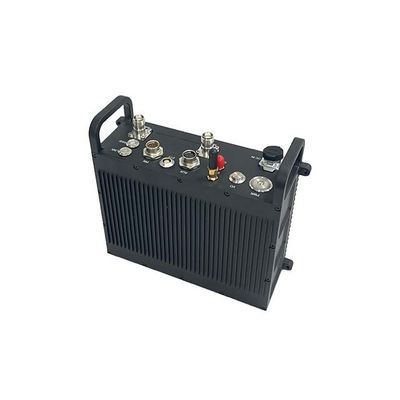

Seamless Mesh Mimo Radio Vehicular Cofdm Transmitter For Vehicle Communication

Waveform

Mobile Network MIMO (MN-MIMO)

MIMO Technology

Space-time coding,Space Diversity,TX /RX beamforming,Spatial multiplexing

Receive Sensitivity

-103dBm@5MHz BW

Channel Bandwidth

2.5/5/10/20MHz ,40MHz optional；FDD by dual-antennas with two-frequencys transceiver(Carrier Aggregation) optional

Data Rate

1-100Mbps(20MHz BW)/180Mbps(40MHz BW) Adaptive,QoS

Modulation Mode

TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed setting optional)

RF Output Power

10Watts×2/20Watts×2

Single Hop Communication Distance

100-300 KM (visible), 1-30 KM (urban area)

Mode

Distributed without a center Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Two or three floors Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid

Single Hop Delay

Average 7mS(20MHz BW)

Encryption

DES, AES128/256 ,SNOW3G/ZUC optional,Chip /TF card encryption customized

Anti-jamming Mode

Manual spectrum scanning channel selection, Full band Intelligent frequency channel Selection(Spectrum awareness)/Full band
Autonomous frequency hopping/Roaming mode optional

Local/Remote Management

Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance,GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade.Remote silence and wake-up options

Others

The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second.There is no limit on
the user capacity of a single system(256 nodes or more) and the number of hops in Mesh networks(Data 15+ hops, voice 10+ hops,
video 8+ hops). The total bandwidth loss of multiple hops is less than 70%.Automatic carrier tracking, support over 1000 km/h
mobile communication

UHF

350-450/450-550/570-700/800-950

L Band

1000-1200/1300-1550

MIIT

336-344/512-582/566-626/ 606-678/1420-1520/1430-1444

S Band

1.6-1.8/1.8-2.0/2.0-2.2/2.2-2.5

C Band

4.4-5.0/5.0-6.0

Operation Temperature

-40℃ ~+80℃

Protection Level

IP66,IP67/IP68 Customized

Size/Weight

22.9x18.9x6.2cm/3.86kg(with 22.2V/9.6AH battery Backpack Radio) 31.4x18.9x6.2cm/4.95kg(with 14.8/28.8AH battery Backpack Radio)

Installation/Color

4 Mounting Holes/Black,Lron Gray,Army Green Optional

Supply Voltage

14.8-36VDC(10Watts×2 Backpack Radio)

Power consumption

Operation 3-6A/Standby 0.7-0.9A@16.8V(10Watts×2 Airborne Radio)

Power Selection

Power Supply by Twist-Lock Battery or Main Cable

10-12/6-8 hours for 28.8/9.6AH polymer lithium battery

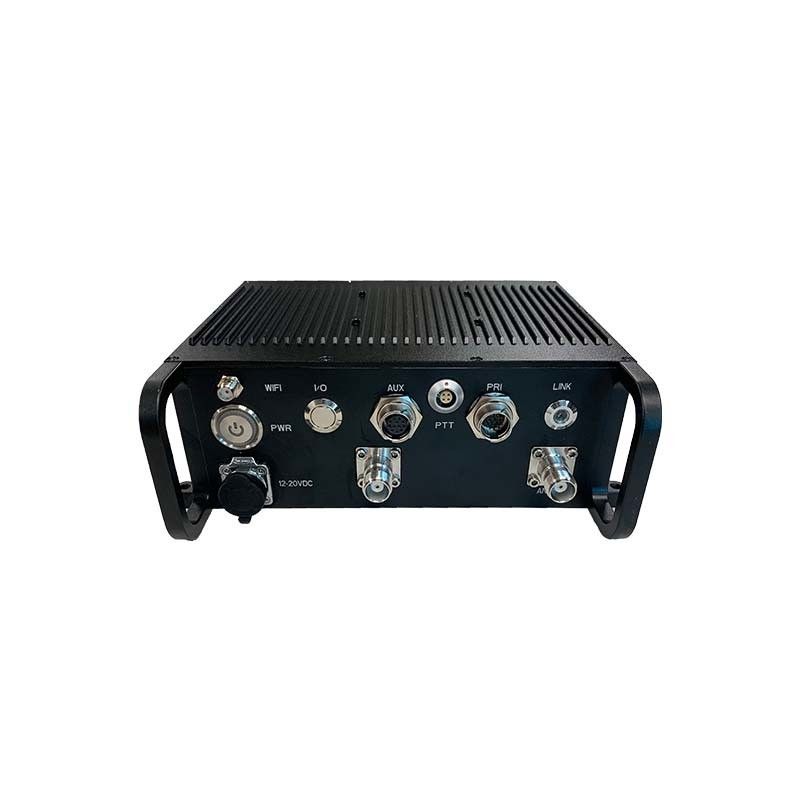

Basic interface

2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input

Push to talk/Auxiliary interface

MIC,SP,PTT,GND,RS485/422,USB2.0OTG

Network Extension Optional

Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

Video Extension Optional

Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1

Link Status Indicator

Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is
connected Blinking green - Voice PTT is down

RSSI Link Indicator

Steady green - The link quality is excellent Blue Steady - The link quality is good Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down

Management Interface/Control Interface

Web-based network management/GUI, API for secondary development interface/SNMP

Size/Weight

10.1x5.4x1.9cm/123.5g

RF

SMP
