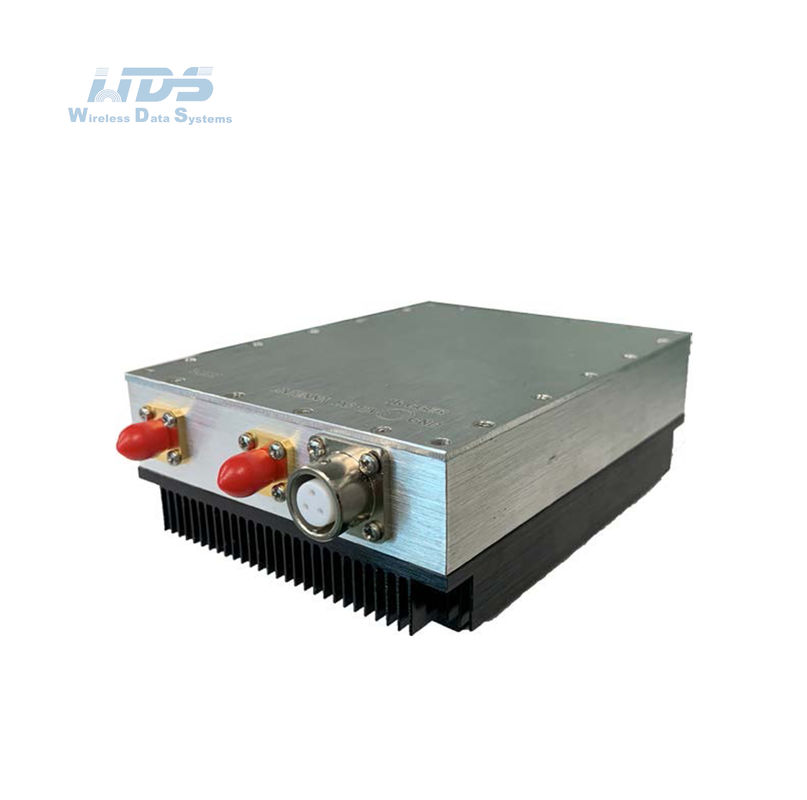

BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional

BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional
BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional

Large Image :  BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional

Product Details:
Place of Origin: China
Brand Name: WDS
Model Number: BiAMP RF
Payment & Shipping Terms:
Minimum Order Quantity: 1 until
Price: US$2000 1 unit
Delivery Time: 1 days
Payment Terms: T/T
Supply Ability: 50000 unit a year
Contact Now

BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional

Description
Application: Kitchen Garden Input Voltage: AC100~240V 50/60Hz
Winding Connection Mode: Star Width: 100mm - 1200mm
Working Mode: Semi~open, Semi~closed Or Closed System Temperature Scope: 0-350℃
Appearance: Liquid Port: Shenzhen
Applications: Kids/Students/Beginners Probe Connector: 2
Thermal Conductivity: 0.39W/m.k Marerial: METAL
Display Specification: 8inches And 10inches Purity: 98%
Voltage Level: Low Voltage
Highlight:

BIAMP cb radio rf amplifier

,

BiDirectional cb radio rf amplifier

,

BIAMP high power amplifier rf

BiAMP-VHF/UHF/L band/S band/C band
Bi-Directional RF Amplifier
BiAMP RF Power Amplifier Provides 40/20/10/5W,150M/230M/400M/600M/800M/900M/1.4G/2.3G/5GHz Linear/Unlinear RF Amplifier, Designed For Broadband/Narrowband Digital Data Link Applications. This Series of Amplifiers Adopts Silicon Based Potassium Nitride Power Amplifier, High Speed Automatic Tx/Rx Switching,High Efficiency RF Output.

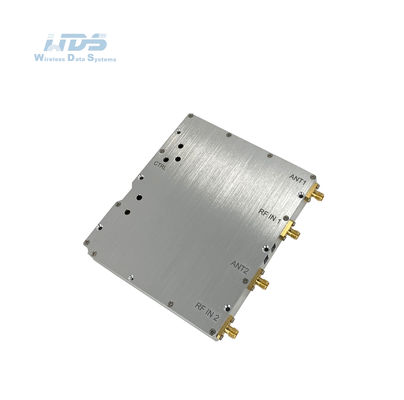

BIAMP Universal Cb Radio RF Amplifier High Power BiDirectional 0
Features:
1.Supports 1*1,2*2 MIMO, integrated sending and receiving
2.Single output up to 40W
3.RX band pass filtering
4.Automatic Rx/Tx switching
5.Manual or Automatic Tx/Rx Switching Available
6.Automatic gain control, wide voltage input
7.Perfect protection design
8.Tx/Rx LEDs
9.Small size, light weight, stable and reliable

Applications:
1.Increase P400/P900,DDL/ PDLL/PMDDL Communication Range
2.Applicable to Silvus, Persistent, DTC,Other Broadband Radio

Specifications
Frequency 225-400/400-700/840-845/902-928MHz,1.0-1.5/2.0-2.5/4.4-5.0/5.0-6.0GHz
Bandwidth 2M/4M/5M/10M/20M/40M/100MHz
TX Power Gain 20-27dB
RX Gain 7-10dB
Tx Power O/P Modulation Mode Power
P1dB >25W
QAM64 8W
QAM16 10W
QPSK 13W
DC Supply Voltage 18-28V
Rx/Tx Switching <1μs
Input Signal 13-20dBm
Impedance 50Ω
Power Consumption ≤120W(At 40dBm output)
Connector SMA mother (RF input, RF output)
Weight 410g
2x2 Size 11x12.7x1.6cm





Tag:

high power amplifier rf,

Positioning Data Link,

cb radio rf amplifier
