Product Details:
|
| Type: | Module/Airborne /Handheld | ||
|---|---|---|---|
| Highlight: | 4W cofdm wireless video transmitter,Mimo cofdm wireless video transmitter,4W mimo module |
||

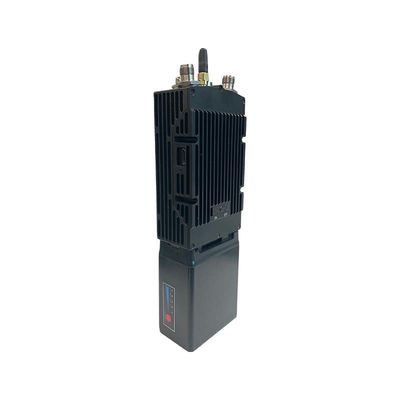

Double Antenna NBMesh-4Watts Module The Perfect Fit for Airborne and Handheld Devices
|
General
|
|
|
|
Frequency
|
UHF(225-400/570-700MHz)/L Band/S Band/C Band
|
|
|
Channel Bandwidth
|
250k/500k/1MHz
|
|
|
Modulation Mode
|
BPSK/QPSK/16QAM (Adaptive), OFDM(Dual Antenna)
|
|
|
Multi-access Mode
|
CSMA/TDMA
|
|
|
RF Channel
|
1Tx+1Rx,2Tx+2Rx,TDD
|
|
|
Transmit Power
|
4 Watts (Dual Antenna)
|
|
|
Sensitivity
|
-117dBm@250KHz
|
|
|
Airborne Data Rate
(Single Antenna/Dual Antenna)
|
20-75/100-500kbps@250kHz
40-150/250-1000kbps@500kHz
80-300/500-2000kbps@1MHz
|
|
|
Single Hop Communication Distance
|
30-100 km (Visible), 1-30 km (Urban Area)
|
|
|
Work Mode
|
Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Dynamic routing/Multi-hop relay, Star/Line/Network/Hybrid
|
|
|
Connectors
|
Serial port (point-to-point bidirectional, point-to-multiple unidirectional)/ Network Port (unicast, multicast, broadcast)/ Voice,
Location (broadcast) |
|
|
Network Size/ Multi-hop Capability
|
Manual spectrum scanning channel selection, Intelligent frequency channel Selection/Autonomous frequency hopping/Roaming mode optional
|
|
|
Local/Remote Management
|
Single Network More Than 128 Nodes/6 Hops
|
|
|
Network Construction Time
|
Less than 1s
|
|
|
Route Switching Time
|
Less than 1s
|
|
|
Single Hop Delay
|
10~ 20ms
|
|
|
Voltage/ Power Consumption
|
9-20V/1-2A(4Watts Handheld/Airborne/Module)
|
|
|
Environmental
|
-40℃ to +85℃
|
|
|
Dimensions/Weight
|

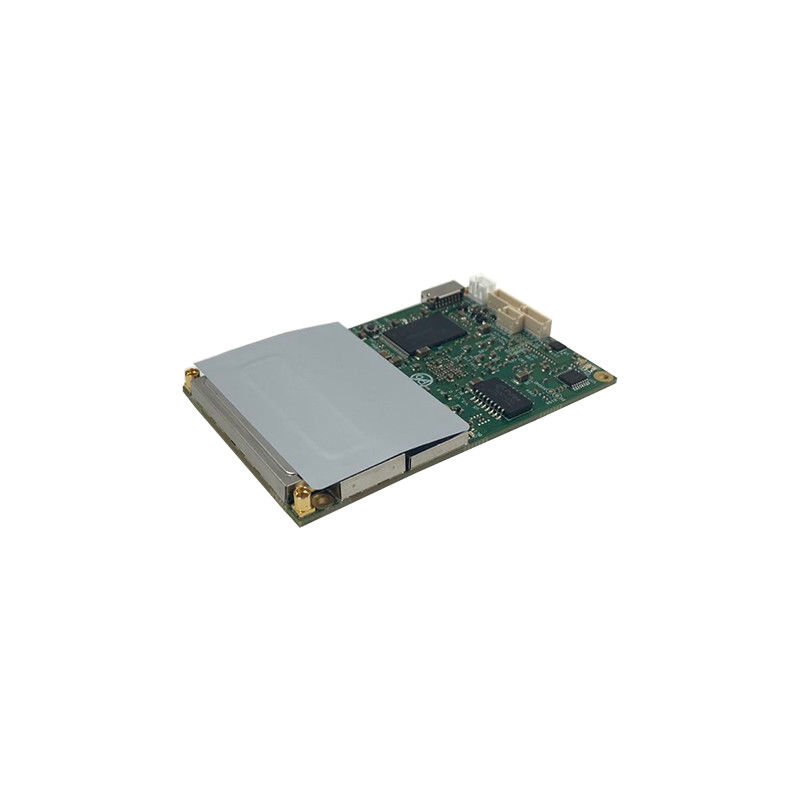

8.6×5.4×1.0cm/40g(4Watts Dual Antenna Module)

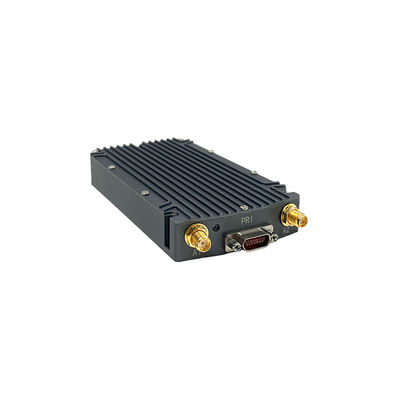

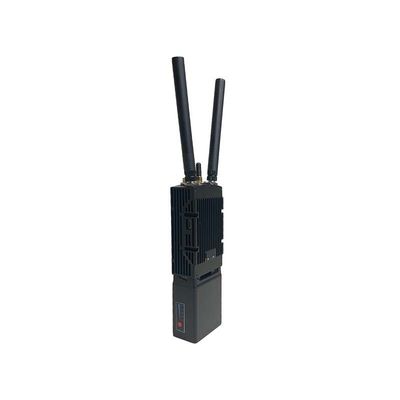

11.7×6.2×1.9cm/149g(4Watts Dual Antenna Airborne) 23.5x6.8x3.9cm/786g(4Watts Dual Antenna Handheld)
|
|
