| General |
| SDR Platform, Waveform |
AD936X+FPGA (7Z020,7Z030,7Z035,7Z100), Mobile network MANET+MIMO |
| MIMO Technology |
Space-time coding, Receive Diversity, TX /RX beamforming, Spatial multiplexing |
| Receive Sensitivity |
-103dBm@5MHz BW |
| Channel Bandwidth |
1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
| Data Rate |
1-70Mbps (20MHz BW, 7Z020)/1-130Mbps (20MHz BW, beamforming by 7Z030)/1-252Mbps (40MHz BW)/1-350Mbps (80MHz BW) Adaptive, QoS |
| Modulation Mode |
TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |
RF Output Power
(Support TPC, transmission power control, 1dBm adjustable) |
0.25Watts×2; 0.5Watts×2; 1Watts×2; 2Watts×2; 4Watts×2; 5watts×2; 10Watts×2; 20Watts×2; 40Watts×2 |
| Mode |
Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay |
Average 6mS (Unidirectional, 20MHz BW) |
| Encryption |
DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
| Anti-Jamming Mode |
Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
|
Local/
Remote Management
|
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS(GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional) |
| Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second;
There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops);
The total transmission rate loss for more than three hops is less than 70%;
Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band or 1T2R at dual-band) |
| BAND |
Frequency range |
| VHF/UHF (MHz) |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470* |
| L Band (GHz) |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5* |
| S Band (GHz) |
2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6* |
| C Band (GHz) |
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| |
(Note: RF power, Dimensions, Weight is different) |
| MIIT (MHz) |
336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
| Environmental |
| Operation Temperature |
-40ºC ~+80ºC |
| Protection Level |
IP66 (IP67/IP68 Customized) |

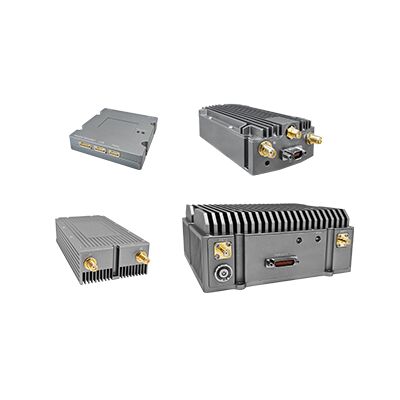

| Mechanical |
| Size/Weight |

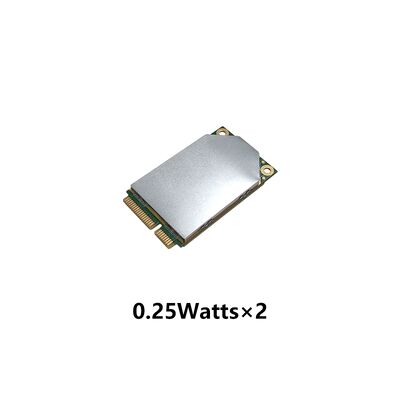

5.1x3.0x0.7cm/14g, 0.25Watts×2-Iron Gray

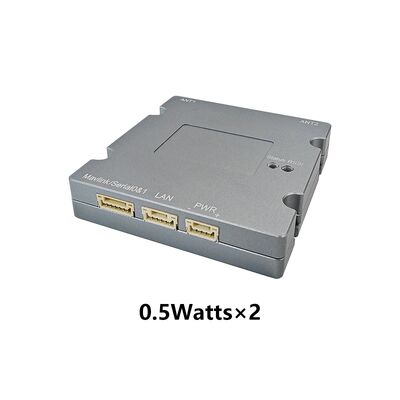

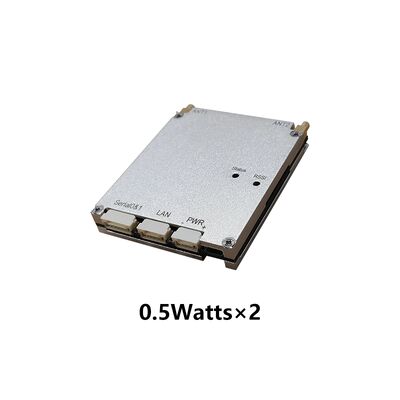

6.0x4.8x1.1cm/46g, 0.5Watts×2-Iron Gray
6.0x5.8x1.3cm/60g, 0.5Watts×2-Iron Gray

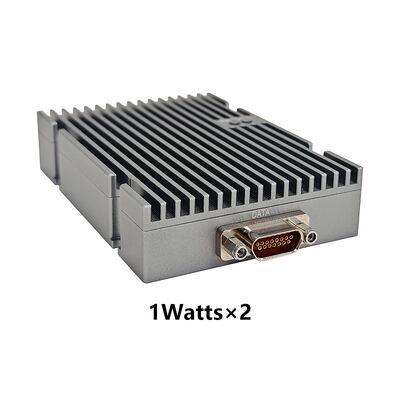

9.6x5.8x1.9cm/120g, 1Watts×2-Iron Gray

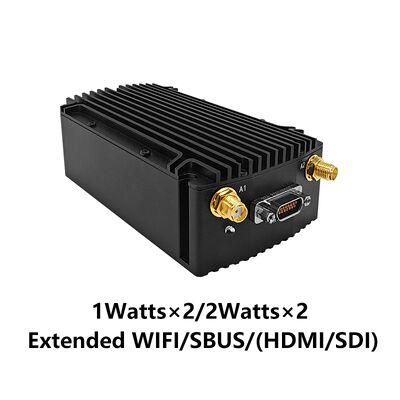

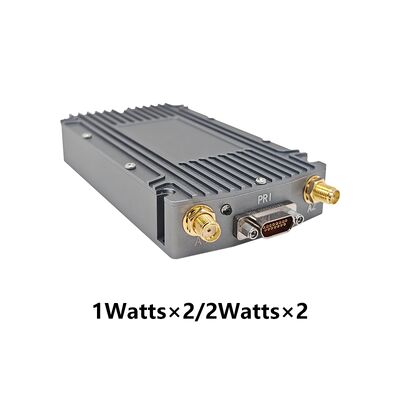

11.7x6.2x2.0cm/160g, 1Watts×2/2Watts×2-Iron Gray
11.7x6.2x3.8cm/349g, 1Watts×2/2Watts×2-Black
11.7x6.2x4.2cm/364g, 1Watts×2/2Watts×2-Multi-interface Black

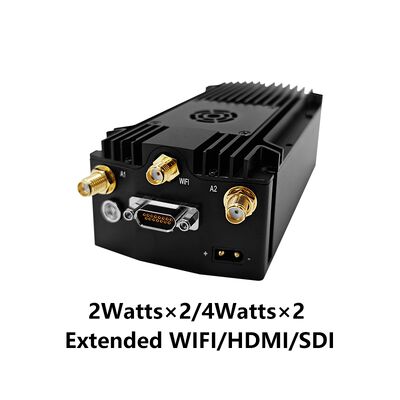

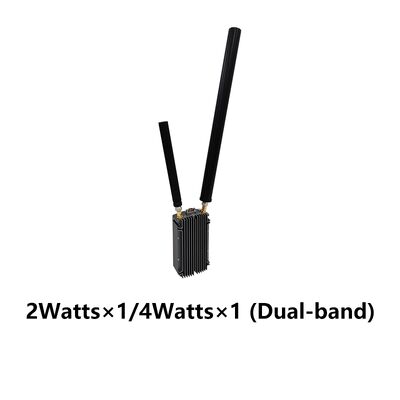

11.7x6.2x3.8cm/380g, 2Watts×2/4Watts×2-Fan Black

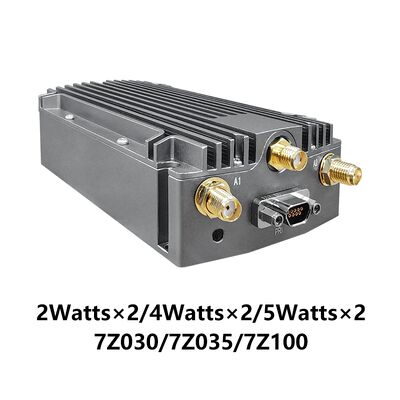

11.7x6.2x3.2cm/287g, 2Watts×2/4Watts×2/5Watts×2-Iron Gray
13.8x6.2x2.7cm/225g, 4Watts×2-Iron Gray

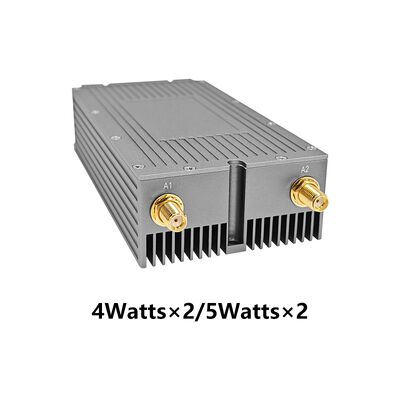

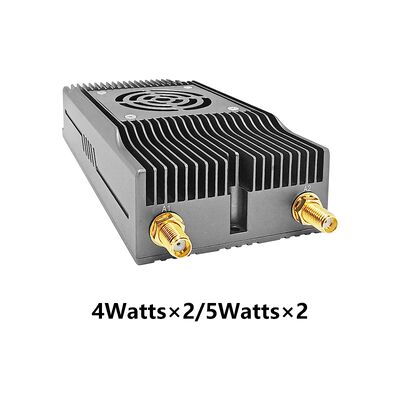

13.8x6.2x3.1cm/271g, 5Watts×2-Fan Iron Gray

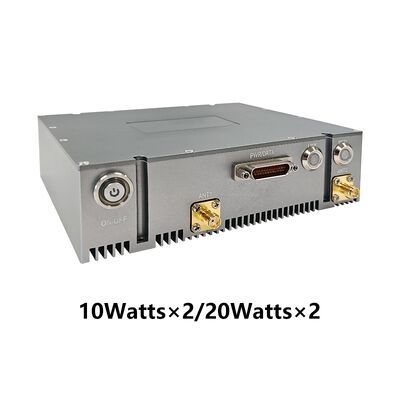

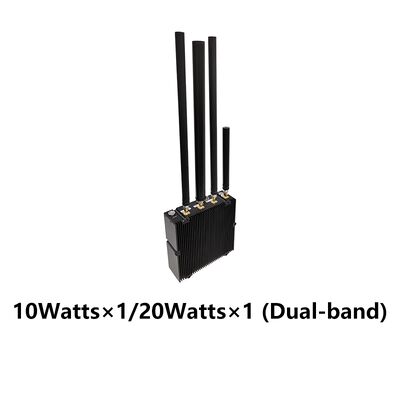

12.8x13.4x3.8cm/598g, 10Watts×2/20Watts×2-Iron Gray
14.2x13.7x5.7cm/1.08kg, 10Watts×2/20Watts×2-Black

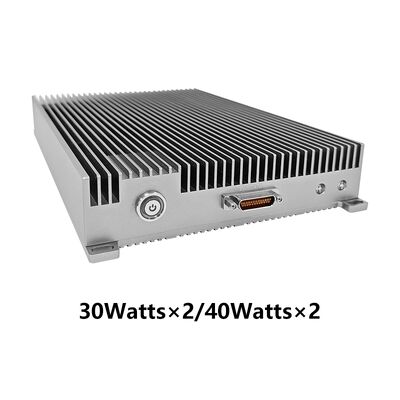

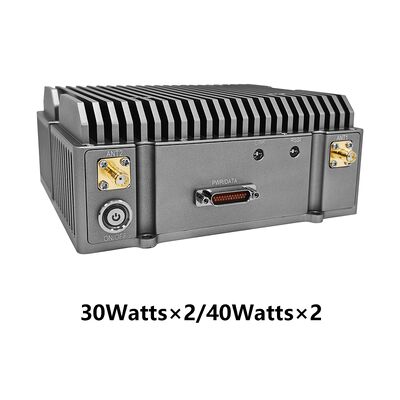

14.2x13.7x6.0cm/1.11kg, 30Watts×2/40Watts×2-Dark Gray
23.0x14.8x3.5cm/1.25kg, 30Watts×2/40Watts×2-Thin Iron Gray |
| Installation/Color |
4 Mounting Holes/Black, Iron Gray (Army Green Optional) |
| Power |
| Supply Voltage |
3.5-5V DC, 0.25Watts×2
9-39V DC, 0.5Watts×2/1Watts×2
12-36V DC, 2Watts×2/4Watts×2/5Watts×2
18-32V DC, 10Watts×2/20Watts×2
28-32V DC, 30Watts×2/40Watts×2 |
| Power consumption |
Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts×2
Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2
Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2
Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2/5Watts×2
Operation 3-6A/Standby 0.7-0.9A@18V, 10Watts×2
Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2
Operation 22A/Standby 0.4-1.6A@28-32V, 30Watts×2/40Watts×2 |
| Power Selection |
Power Supply by Main Cable |
| Interface |
| Basic interface |
2xIPEX/2xMMCX/2xSMP/2xSMA RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, DC input. TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps, WIFI AP, BD/GPS (GNSS) optional. Supports transparent transmission via Ethernet and serial ports, and supports all communication protocols, including MAVLink. Service priority can be selected |
| Network Extension Optional |
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension Optional |
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Power Indicator |
Steady green - Powered on |
| Link Status Indicator |
Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected |
| RSSI Link Indicator |
Steady green - The link quality is excellent
Steady blue - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor
Off - The link is interrupted |
Management Interface/
Control Interface |
Web-based network management/GUI, API for secondary development interface/SNMP |
