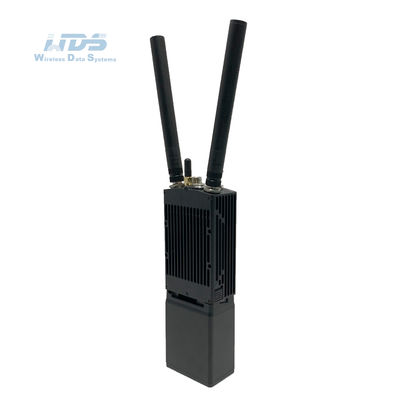

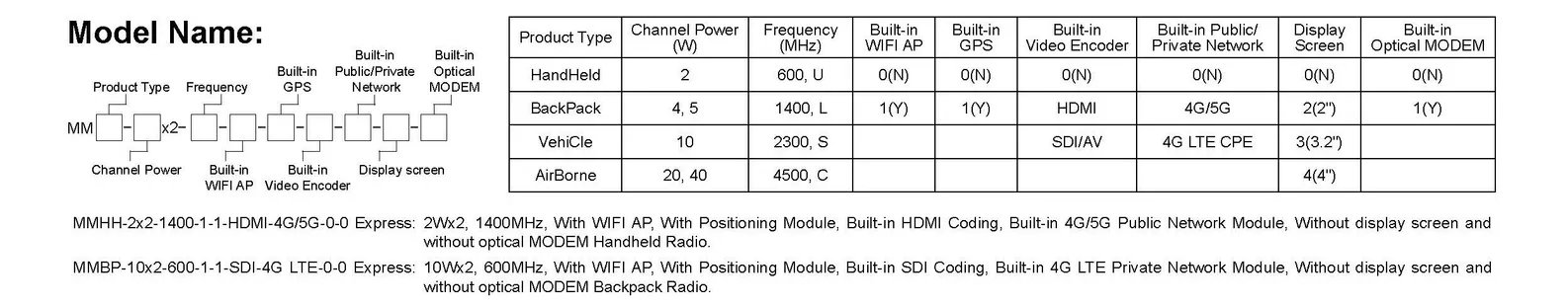

| General |
| SDR Platform, Waveform |
9361+7Z030/7Z035 or 7Z100, Mobile network MANET+MIMO |
| MIMO Technology |
Space-time coding,Receive Diversity,TX /RX beamforming,Spatial multiplexing |
| Receive Sensitivity |
-103dBm@5MHz BW |
| Channel Bandwidth |
1.25/2.5/5/10/20MHz,30/40MHz setting; 80MHz Carrier Aggregation (Dual-antennas with two-frequencies of 40MHz+40MHz for transceiver) optional |
| Data Rate |
1-130Mbps(20MHz BW)/252Mbps (40MHz BW)/350Mbps(40MHz+40MHz of Carrier Aggregation) Adaptive, QoS |
| Modulation Mode |
TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed setting optional) |
RF Output Power
(Support TPC, transmission power control, 1dBm adjustable) |
2Watts×2
4Watts×2 |
Single Hop
Communication Distance |
100-300 KM (LOS), 1-30 KM (urban area) |
| Mode |
Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing, Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay |
Average 10mS(20MHz BW) |
| Encryption |
DES, AES128/256 ,SNOW3G/ZUC optional,Chip /TF card encryption customized |
| Anti-Jamming Mode |
Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
| Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
| Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second
There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops).
The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD,2T2R at single band or 1T2R at dual-band) |
| BAND |
Frequency range |
| VHF/UHF |
360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz |
| L Band |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.2*GHz |
| S Band |
2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz |
| C Band |
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz |
| |
(Note: RF power, Dimensions, Weight is different) |
| MIIT |
336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz |
| Environmental |
| Operation Temperature |
-40ºC ~+80ºC |
| Protection Level |
IP66,IP67/IP68 Customized |

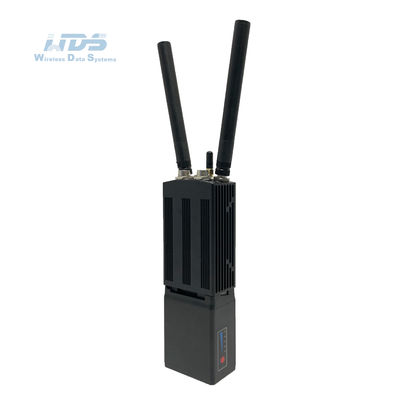

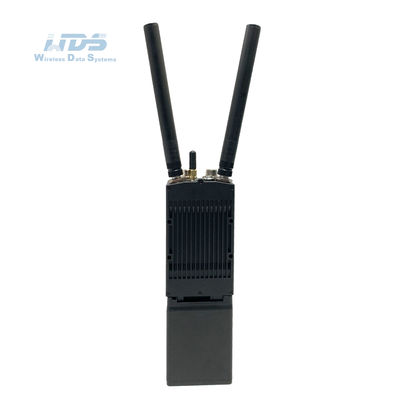

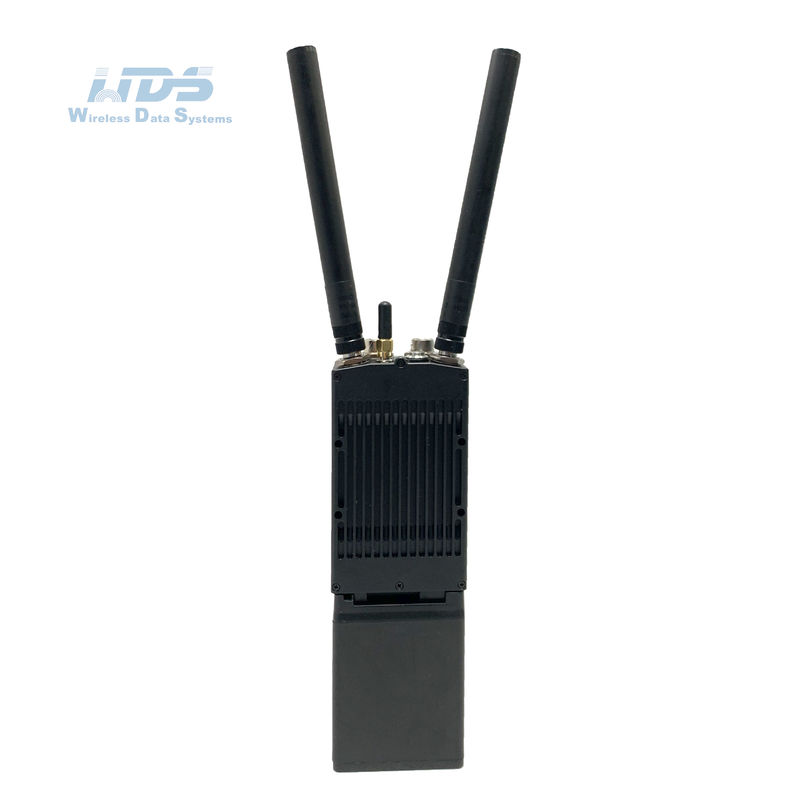

| Mechanical |
| Size/Weight |

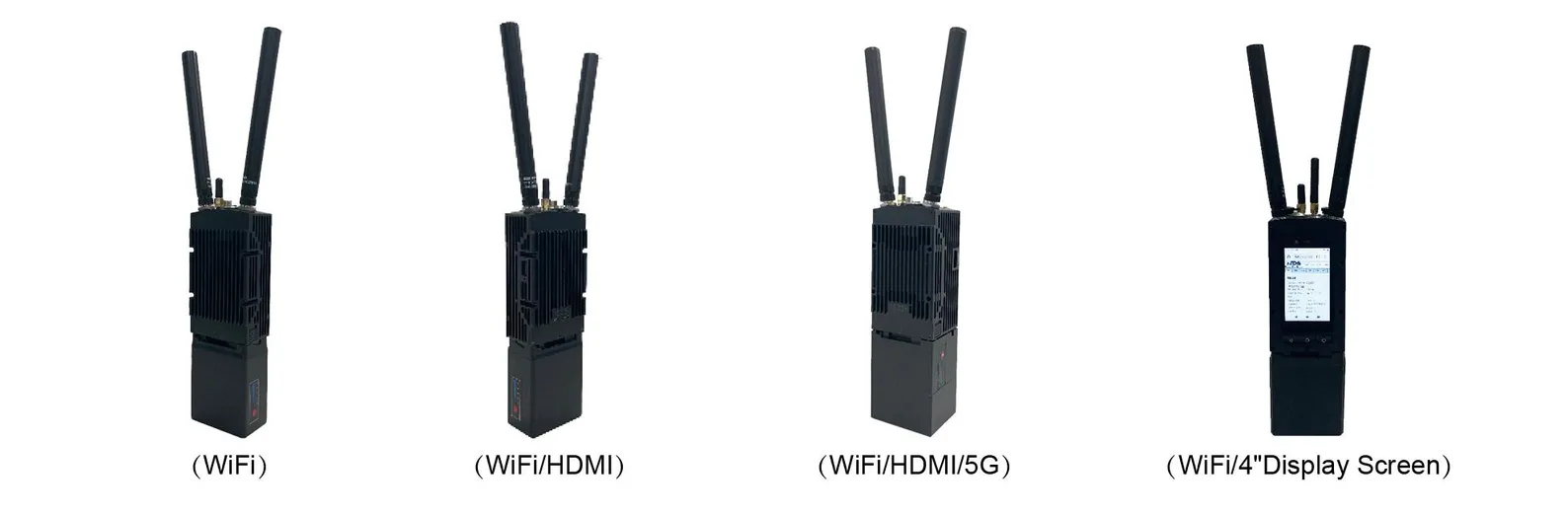

19.0x6.8x3.8cm/0.769kg(with 11.1V/77.7Wh battery and WIFI Handheld Radio)
22.0x6.8x3.8cm/0.982kg(with 11.1V/114Wh battery Handheld Radio)
20.5x6.8x3.8cm/0.799kg(with 11.1V/77.7Wh battery and WIFI/HDMI Handheld Radio)
20.7x6.9x5.5cm/1.30kg(with 11.1V/77.7Wh battery and WIFI/HDMI/5G Handheld Radio)
19.0x6.8x3.8cm/0.789kg(with 11.1V/77.7Wh battery and Display Screen Handheld Radio) |
| Installation/Color |
4 Mounting Holes/Black, Iron Gray, Army Green Optional |
| Power |
| Supply Voltage |
9-24/12-28VDC (2Watts×2/4Watts×2) |
| Power consumption |
Operation 1-2A/Standby 0.4-0.6A@12V (2Watts×2)
Operation 2-4A/Standby 0.5-0.7A@12V (4Watts×2) |
| Power Selection |
Power Supply by Twist-Lock Battery or Main Cable |
| Batteries |
10/6 hours for 114/77.7Wh |
| Interface |
| Basic interface |
2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |

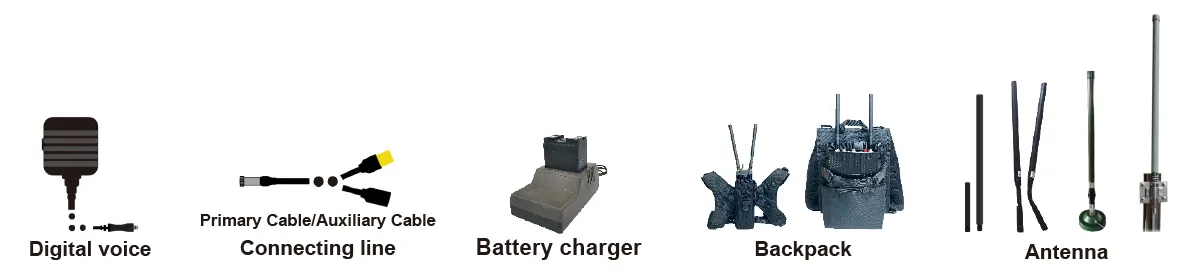

| Push to talk/Auxiliary interface |
MIC,SP,PTT,GND,RS485/422,USB2.0OTG |

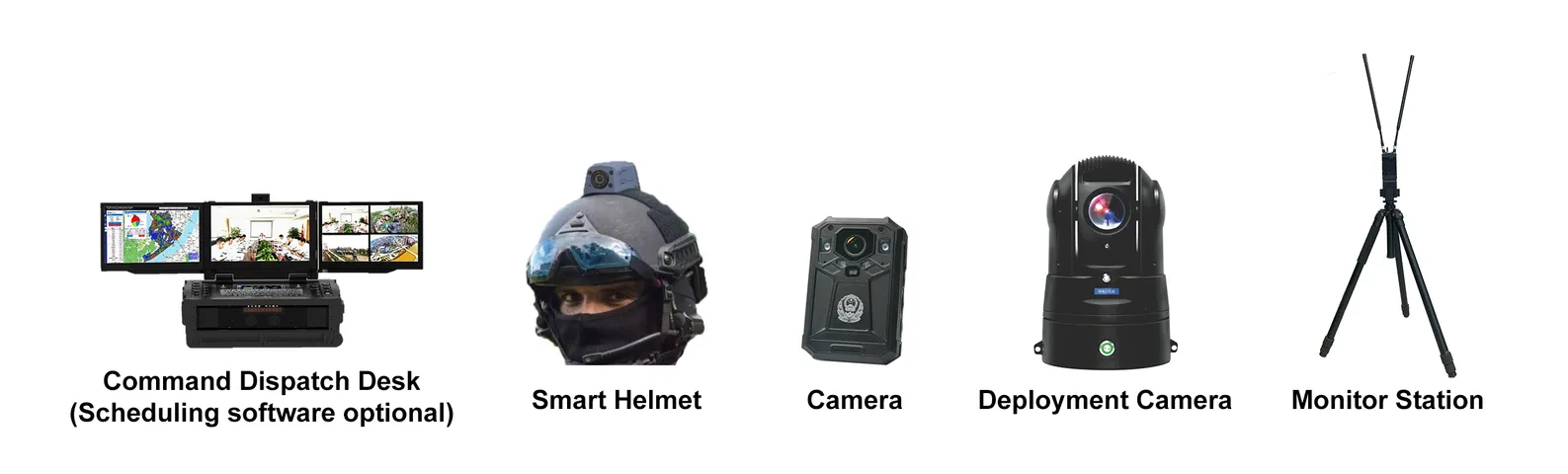

| Network Extension |
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension |
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator |
Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected
Blinking green - Voice PTT is down |
| RSSI Link Indicator |
Steady green - The link quality is excellent
Steady blue - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor or link is down |
Management Interface/
Control Interface |
Web-based network management/GUI, API for secondary development interface/SNMP |
