Mesh Radio-Intelligent Frequency Selection-Mimomesh Airborne Radio

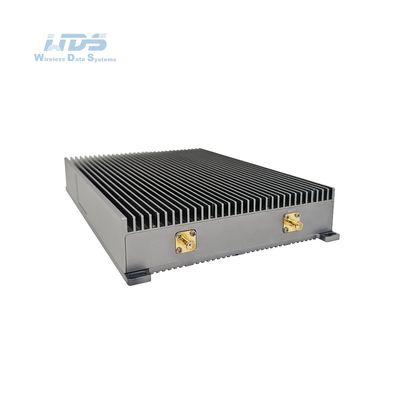

Large Image : Mesh Radio-Intelligent Frequency Selection-Mimomesh Airborne Radio

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WDS/Sinosun
Model Number:	MMAB

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$4,750.00/unit
Supply Ability:	1000 Set/Sets per Month

Contact Now

Mesh Radio-Intelligent Frequency Selection-Mimomesh Airborne Radio

Description

Type:

Airborne

Highlight:

MimoMesh Airborne Radio Network

MimoMesh Airborne Radio Communication Network

MimoMesh Airborne Radio

Mesh Radio-MIMOmesh Airborne Radio

Beamforming/Space Diversity/Spatial Multiplexing, Reach More Than Twice Range and Data Rate
Intelligent Anti-jamming by Smart Frequency Selection, Adaptive Frequency Hopping
Wide Range Bands, Dual Band Selection, Free To Choose Different Working Frequency Band, Adapt To Complex Terrain Environment And Electromagnetic Environment

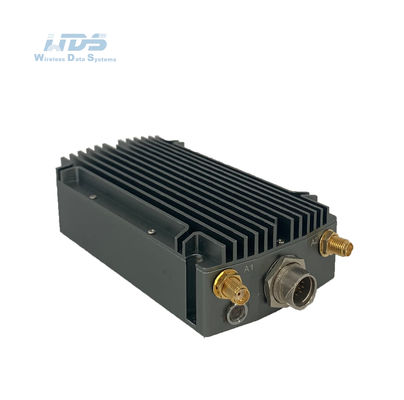

Mesh Radio-Intelligent Frequency Selection-Mimomesh Airborne Radio 0

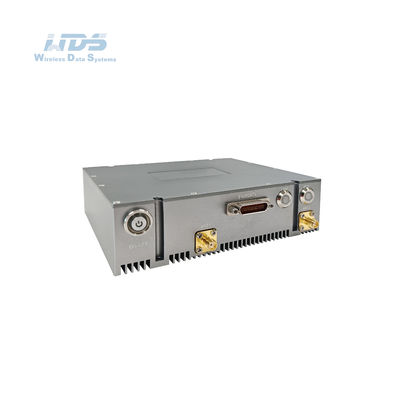

Mesh Radio-Intelligent Frequency Selection-Mimomesh Airborne Radio 0

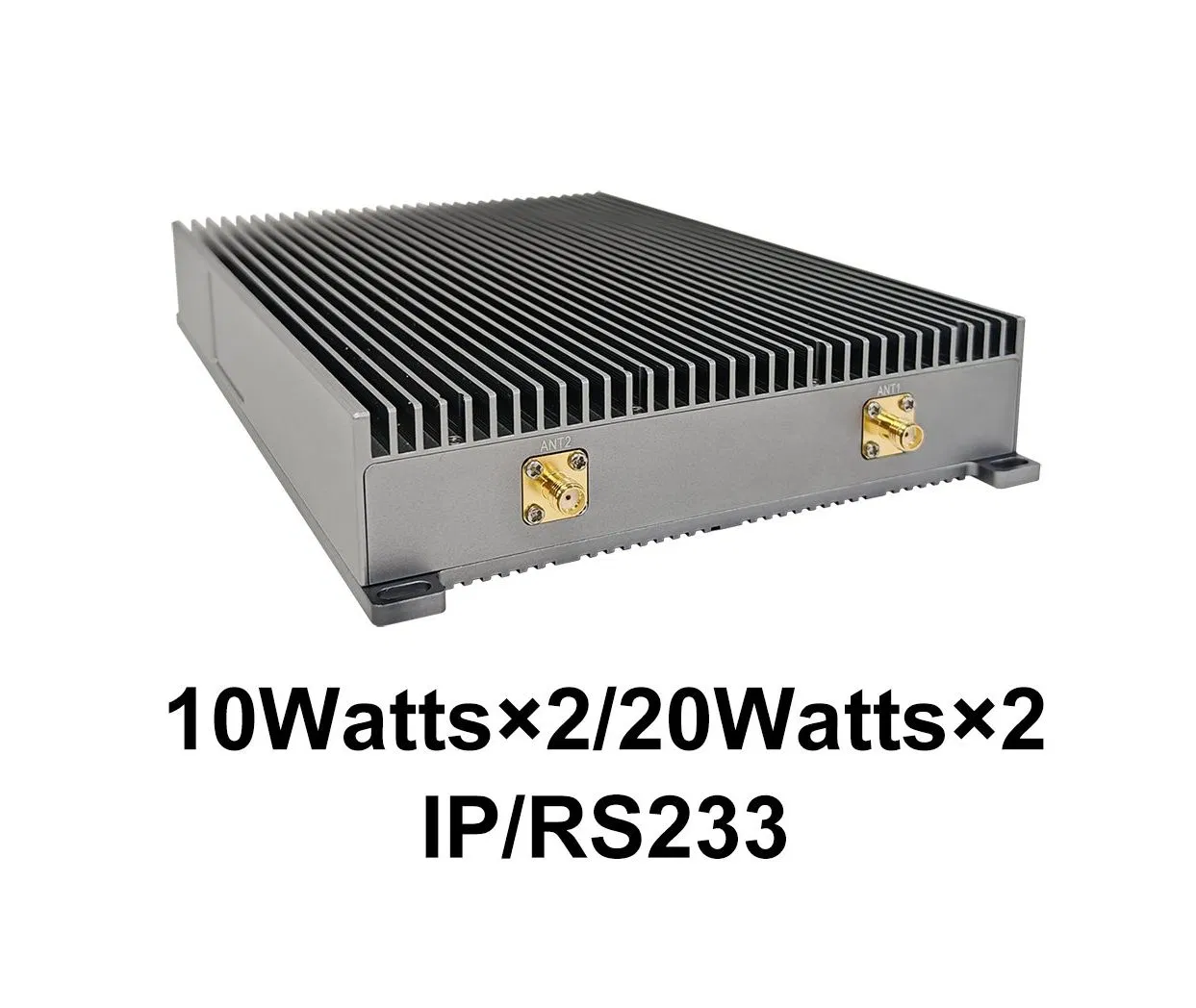

Mesh Radio-Intelligent Frequency Selection-Mimomesh Airborne Radio 1

The Latest Generation Of MIMOmesh Broadband Mesh Radio
Performance:
1.Mesh network (self-forming, self-adapting ,self-healing), high-speed throughput
2.Non-visual urban construction,jungle multi-path transmission terrain, effective connection
3.High-speed movement of ground, water and air, effective connection
4.Multiple antenna settings, omnidirectional, high gain orientation or mixing
5.GPS/BD and Multicast Support

Advantages:
1.Increased 4.5 times coverage in densely populated areas
2.Increase the range by 2 times in the visible limit environment
3.Increase 2-4 times data transmission rate
4.The same communication range and transmission data rate, reducing transmission power by 2 times

Significant applications in Non Line of Sight /Multipath Fading environments, video/data/voice critical ommunications:
1.Robot / Unmanned Vehicle, Reconnaissance / Surveillance / Anti-Terrorism / Monitoring
2.Air-to-air & air-to-ground & ground-to-ground, public safety / special operations
3.Urban network, emergency support / normal patrol / traffic management
4.Inside and outside the building, fire fighting / rescue and disaster relief / forest / civil air defense / earthquake
5.TV broadcast wireless audio / video / live broadcast
6.Marine communication / high speed transmission on the opposite side of the ship
7.Low deck wireless network / ship landing
8.Mine / tunnel / basement connection

MIMOmesh Airborne Radio Specifications

General
SDR Platform, Waveform	9361+7Z030/7Z035 or 7Z100, Mobile network MANET+MIMO
MIMO Technology	Space-time coding,Receive Diversity,TX /RX beamforming,Spatial multiplexing
Receive Sensitivity	-103dBm@5MHz BW
Channel Bandwidth	1.25/2.5/5/10/20MHz,30/40MHz setting; 80MHz Carrier Aggregation (Dual-antennas with two-frequencies of 40MHz+40MHz for transceiver) optional
Data Rate	1-130Mbps(20MHz BW)/252Mbps (40MHz BW)/350Mbps(40MHz+40MHz of Carrier Aggregation) Adaptive, QoS
Modulation Mode	TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed setting optional)
RF Output Power (Support TPC, transmission power control, 1dBm adjustable)	2Watts×2 4Watts×2 10Watts×2 20Watts×2
Single Hop Communication Distance	Air to G. 50~150/100~200KM (2Watts×2/4Watts×2), Air to G. 150~300/250~500KM (10Watts×2/20Watts×2)
Mode	Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid
Single Hop Delay	Average 10mS(20MHz BW)
Encryption	DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine
Anti-Jamming Mode	Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference
Local/Remote Management	Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/ jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others	The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total transmission rate loss for more than three hops is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second)
Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD,2T2R at single band or 1T2R at dual-band)
BAND	Frequency range
VHF/UHF	360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz
L Band	1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.2*GHz
S Band	2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz
C Band	4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz
	(Note: RF power, Dimensions, Weight is different)
MIIT	336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz
Environmental
Operation Temperature	-40ºC ~+80ºC
Protection Level	IP66,IP67/IP68 Customized
Mechanical

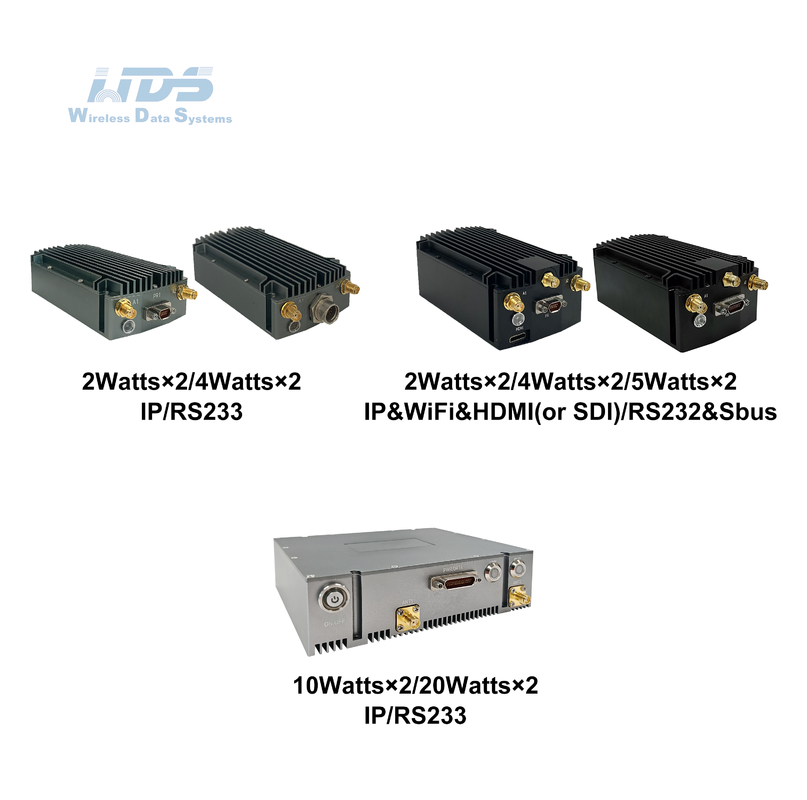

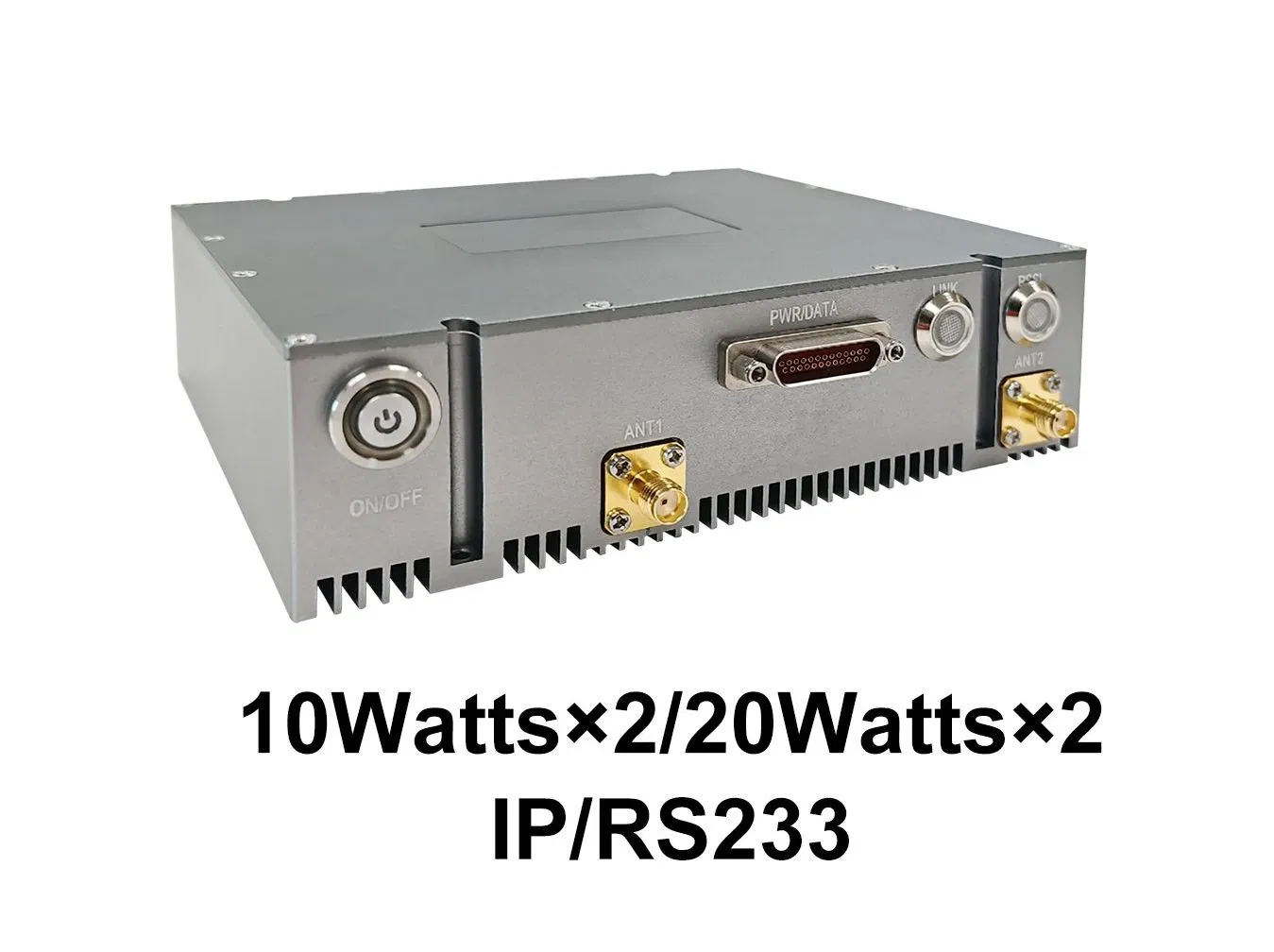

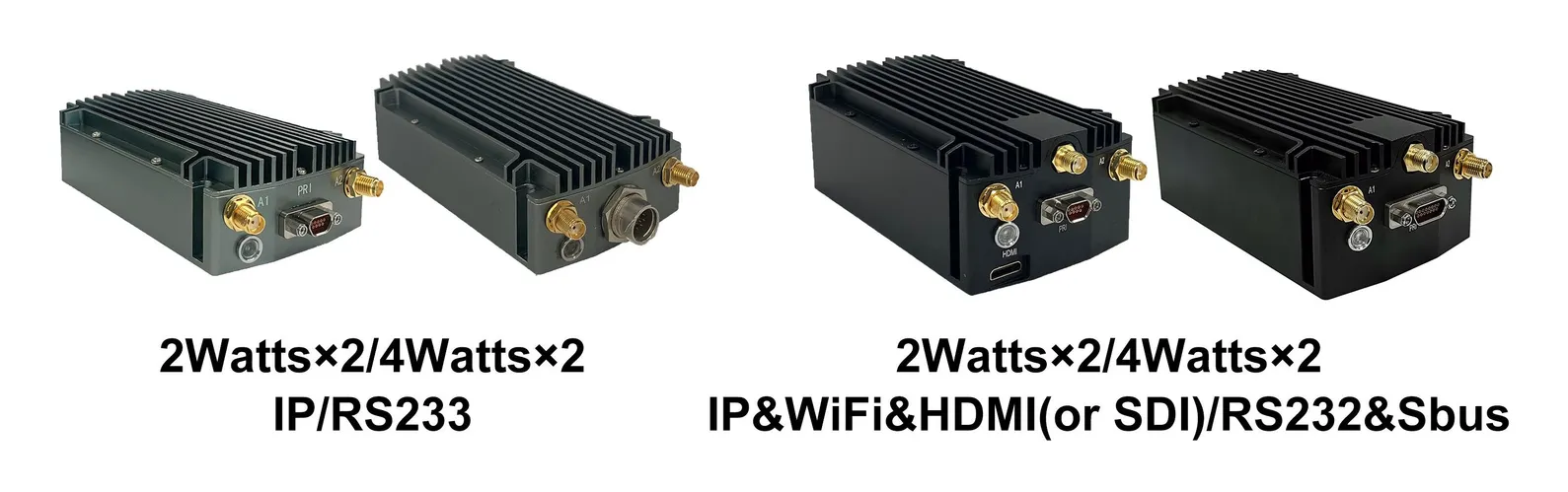

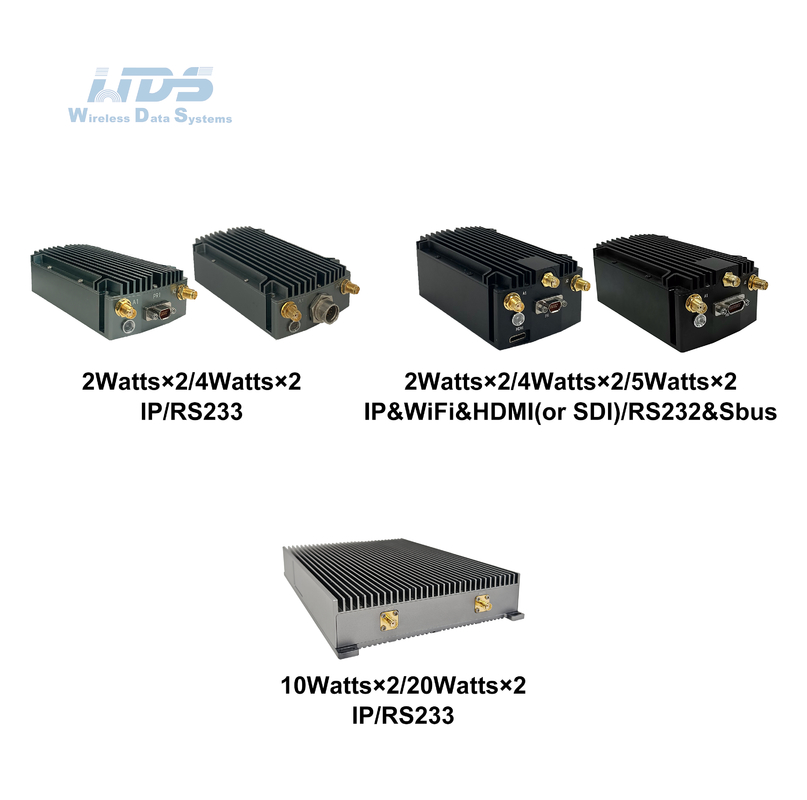

Size/Weight	11.7x6.2x3.2cm/279g (2watts×2/4watts×2/5Watts×2 Airborne Radio-Iron Gray) 11.7x6.2x3.8cm/343g (2watts×2/4watts×2/5Watts×2 Airborne Multi-interface Radio-Black) 11.7x6.2x4.2cm/364g (2watts×2/4watts×2/5Watts×2 Airborne Multi-interface Radio-Black) 12.8x13.4x3.8cm/674g(10watts×2/20watts×2 Airborne Radio-Iron Gray) 14.2x14.0x5.0cm/990g (10watts×2/20watts×2 Airborne Radio-Black)
Installation/Color	4 Mounting Holes/Black, Iron Gray,Army Green Optional
Power
Supply Voltage	9-24/12-28VDC (2Watts×2/4Watts×2) 18-24/18-36VDC (10Watts×2/20Watts×2)
Power consumption	Operation 1-2A/Standby 0.4-0.6A@12V (2Watts×2) Operation 2-4A/Standby 0.5-0.7A@12V (4Watts×2) Operation 3-6A/Standby 0.7-0.9A@24V (10Watts×2) Operation 6-7A/Standby 0.7-0.9A@24V (20Watts×2)
Power Selection	Main Cable
Interface
Basic interface	2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input

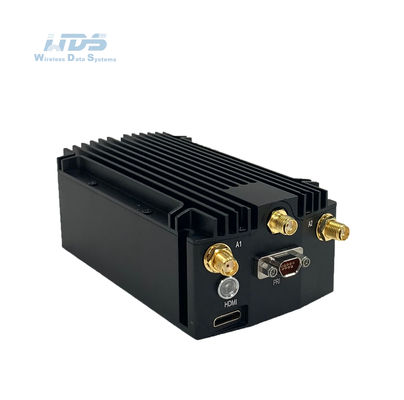

Video Extension	Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator	Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down
RSSI Link Indicator	Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down
Management Interface/ Control Interface	Web-based network management/GUI, API for secondary development interface/SNMP
OEM
Size/Weight	10.1x5.4x1.9cm/123.5g, 2/4/5Watts×2 Module 12.7x11.0x3.8cm/600g, 10/20/40Watts×2 Module
RF	SMP
