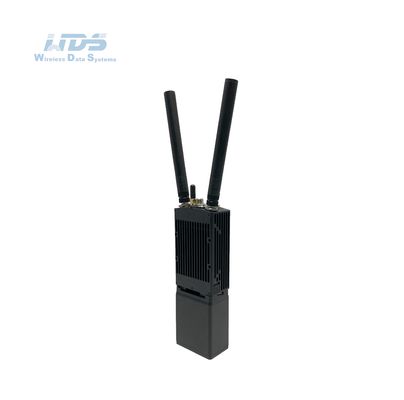

Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link

Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link
Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link

Large Image :  Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link

Product Details:
Place of Origin: Guangdong, China
Brand Name: WDS/Sinosun
Model Number: DDL-HH/DDL-BP
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $2,450.00/1 unit
Delivery Time: 4-7 Months
Payment Terms: T/T
Supply Ability: 3000 unit/units per Month
Contact Now

Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link

Description
Type: Handheld/Backpack Encryption: DES, AES128/256 (SM4/SNOW3G/ZUC Optional, Chip/TF Card Encryption Customized Or External Encryption Machine)
Channel Bandwidth: 1.25/2.5/5/10/20MHz Broadband, 250k/500k/1MHz Narrowband Setting Data Rate: 1-70Mbps(20MHz BW) Broadband, 50-1000kbps Narrowband Adaptive, QoS
Operation Temperature: -40ºC ~+80ºC Protection Level: IP66 (IP67/IP68 Customized)
VHF/UHF (MHz): 360-450/450-550/570-700/800-950, 225-400/225-678/320-470* L Band (GHz): 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*
S Band (GHz): 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6* C Band (GHz): 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*
Highlight:

DDL Handheld mesh radio

,

OEM mesh radio

,

DDL Handheld mesh communication devices

DDLmesh Series of Wireless Digital Data Link
Ultra low delay, Long range, Bidirectional multi channel Radio

The new DDLmesh series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2×2 MIMO, complete functions and abundant frequency bands. DDLmesh series based on SDR software defined radio platform with 2×2 MIMO, it adopts Beamforming, Maximal Ratio Combining(MRC), Maximal Likelihood(ML) algorithm, low density parity check(LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming.
DDLmesh series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.
The application system is mainly composed of the airborne radio with the airborne camera, and the ground radio with the ground computer, as well as the necessary accessories(including power supply, antenna feed system, connection lines and connectors, etc.).
The system can simultaneously transmit three IP/HDMI/SDI/CVBS HD video and multiple two-way transparent data(such as flight control/pod, BD/GPS, voice, etc.). AES encryption ensures transmission security.
Radio the transmission power of the station can reach up to 40W, providing a stable and reliable communication link.

Features:

> 400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km.

> 70Mbps data stream, adaptive dynamic bit allocation technique. Support one-way 4K, multi way 1080P or 720P HD video.

> 3 serial port and 2 video interfaces running at the same time, flight controller, voice, BD/GPS and other data can transmit with video.

> Support P2P, P2MP, MP2MP technique, centerless of no-master/slave. Support VLAN.

> Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP.

> Low power consumption. Tiny volume, lightweight structure, body building for UAV.


Specifications

General
SDR Platform, Waveform 9363 or 9361+7Z020, Mobile Network MANET
MIMO Technology Space-time coding,Receive Diversity,TX /RX beamforming
Receive Sensitivity -103dBm@5MHz BW, -117dBm@250KHz
Channel Bandwidth 1.25/2.5/5/10/20MHz Broadband, 250k/500k/1MHz Narrowband Setting
Data Rate 1-70Mbps(20MHz BW) Broadband, 50-1000kbps narrowband Adaptive, QoS
Modulation Mode TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional)

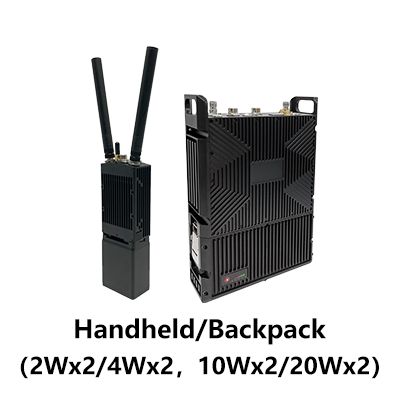

RF Output Power
(Support TPC, transmission power control)		 Handheld: 2Watts x2; 4Watts x2; 5Watts x2
Backpack: 10Watts x2; 20Watts x2
Single Hop
Communication Distance

Handheld: 50-200KM (LOS), 1-30KM (urban area)

Backpack: 100-300KM (LOS), 1-30KM (urban area)
Mode of Communication Decentralized P2P, P2MP and MP2MP communications with cross-connection, supporting small-scale (within 8 nodes) MESH networking with dynamic routing and multi-hop relay
Single Hop Delay Average 6ms (Unidirectional, 20MHz BW)
Encryption DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine)
Anti-Jamming Mode Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional

Local/

Remote Management

 Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS(GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional)
Others The boot time is less than 28 seconds, and the network access/update/switching time is less than 1 second;
The network size is less than 8 nodes, and the total bandwidth loss over three hops is less than 70%;
Automatic carrier tracking, adapting to Doppler frequency shift of ±6kHz frequency deviation, supporting mobile communications at speeds above 7200 kilometers per hour (Mach 6, 2000 meters per second)
Bands(300M-6GHz customizable. Same frequency or different frequency of 2T2R at single band, or 1T2R at dual-band selectable/smart change)
BAND Frequency range
VHF/UHF 360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz
L Band 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*GHz
S Band 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz
C Band 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz
  (Note: RF power, Dimensions, Weight is different)
MIIT 336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz
Environmental
Operation Temperature -40ºC ~+80ºC
Protection Level IP66, IP67/IP68 Customized
Mechanical
Size/Weight

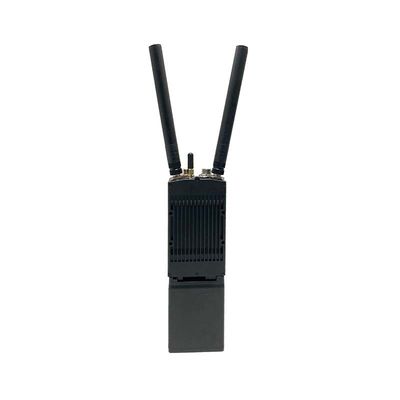

Handheld:

19.0x6.8x3.8cm/769g, with 11.1V/77.7Wh battery
26.0x6.8x3.8cm/1.04kg, with 11.1V/114Wh battery
20.7x6.9x5.5cm/1.30kg, with 11.1V/114Wh battery (5G Routing)
21.0x6.8x5.2cm/972g, with 11.1V/77.7Wh battery (Four-band)
15.5x6.6x3.2cm/430g, Contains lithium battery, does not include antenna and back clip

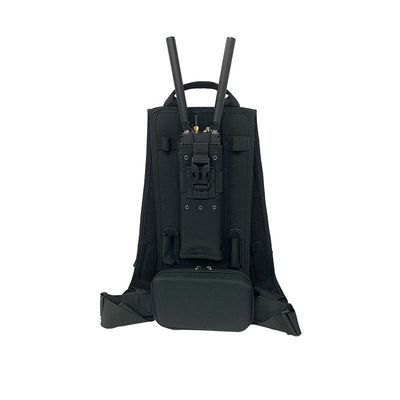

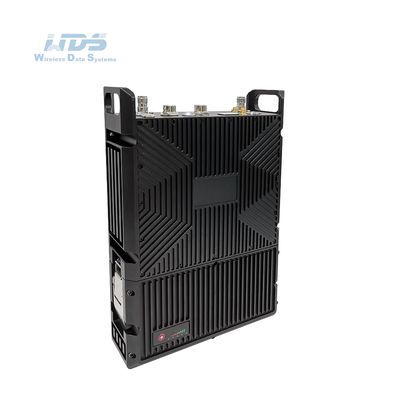

Backpack:

27.5x18.9x6.2cm/4.15kg, with 22.2V/213Wh battery
33.6x18.9x6.2cm/5.26kg, with 22.2V/427Wh battery
29.5x23.0x6.5cm/5.26kg, with 22.2V/213Wh battery (Dual-band Operation)
28.8x21.0x6.2cm/4.61kg, with 22.2V/213Wh battery (Dual-band Selection Operate)
22.9x18.9x6.5cm/2.95kg, with 22.2V/427Wh battery (Four-band Selection Operate)
Color Black, Iron Gray (Army Green Optional)
Installation 4 Mounting Holes, Handheld/Backpack
Power
Supply Voltage

12-36V DC, 2Watts×2/4Watts×2/5Watts×2

18-32V DC, 10Watts×2/20Watts×2
Power consumption

Operation 1-2A/Standby 0.4-0.6A@12V, 2Watts×2
Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2/5Watts×2

Operation 3-6A/Standby 0.7-0.9A@24V, 10Watts×2
Operation 6-7A/Standby 0.7-0.9A@24V, 20Watts×2
Power Selection Power Supply by Main Cable
Interface
Basic interface 2xTNC RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, DC input. TTL (UART), SBUS, and Bluetooth 1.2-230.4Kbps, Wi-Fi access point, and BD/GPS (GNSS) are available. Supports transparent transmission over Ethernet and serial ports, and all communication protocols, including MAVLink. Selectable service priority
Push to talk/Auxiliary
interface		 MIC, SPK, PTT, GND/1xRS232, TTL, SBUS
Network Extension Optional Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
Video Extension Optional Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected
Blinking green - Push-To-Talk has been pushed
RSSI Link Indicator Steady green - The link quality is excellent
Steady blue - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor
Off - The link is interrupted
Management Interface/
Control Interface		 Web-based network management/GUI, API for secondary development interface/SNMP
Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link 0
Stick antenna, Vehicle mounted antenna, All-Round high gain antenna, Directional high gain antenna, Long distance communication directional antenna automatic tracking platform

Data Radio: DDLmesh Wireless Mesh/Data Link Handheld&Backpack Series-Ultra Long Range、Low latency、Low Cost HD Video&Distant Data Transmission Multi-channel Data Link 1
