PMDDL arduino Radio Interface Module Wireless custom

PMDDL arduino Radio Interface Module Wireless custom
PMDDL arduino Radio Interface Module Wireless custom PMDDL arduino Radio Interface Module Wireless custom PMDDL arduino Radio Interface Module Wireless custom PMDDL arduino Radio Interface Module Wireless custom PMDDL arduino Radio Interface Module Wireless custom PMDDL arduino Radio Interface Module Wireless custom

Large Image :  PMDDL arduino Radio Interface Module Wireless custom

Product Details:
Place of Origin: Guangdong, China
Brand Name: WDS/Sinosun
Model Number: DDL/pMDDL/pDDL
Payment & Shipping Terms:
Price: $900.00/sets >=1 sets
Supply Ability: 1000 Set/Sets per Month
Contact Now

PMDDL arduino Radio Interface Module Wireless custom

Description
Type: Module
Highlight:

PMDDL radio interface module

,

Custom radio interface module

,

PMDDL arduino radio module

Revolutionize Your Data Transmission with pMDDL Series Wireless Digital Data Link
Product Overview

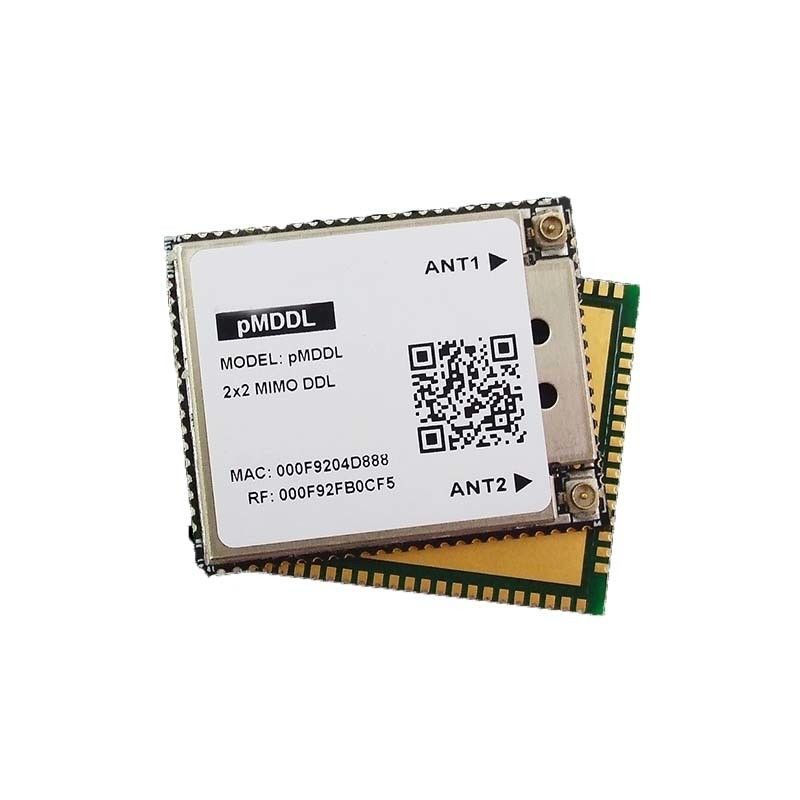

pMDDL(DDL/pDDL) Series New Wireless Digital Data Link


The new pMDDL(DDL/pDDL) digital data link is a new high power OEM product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. The pMDDL(DDL/pDDL) series of 2X2 MIMO wireless digital OEM solutions provides low latency, high bandwidth, long distance communication services for complex data-intensive applications. pMDDL(DDL/pDDL) series products are equipped with 2X2 MIMO, using Maximal Ratio Combining (MRC), Maximal Likity (ML) algorithm, low density parity (LDPC) coding and other technologies to achieve powerful RF performance. pMDDL(DDL/pDDL) series products have outstanding security performance, Ethernet and serial data can communicate at the same time.


PMDDL arduino Radio Interface Module Wireless custom 0
Performance:
1.6GHz/1.8GHz/2.0GHz/2.2GHz/2.3GHz/2.4GHz Software settings can be selected Maximal Ratio Combining(MRC),Maximal Likelihood Decoding(MLD) Low-Density Parity Check(LDPC) IPerf throughput up to 21Mbps@8MHz channel (-78 dBm) IPerf throughput up to 2Mbps@4MHz channel (-102 dBm) Super light, super small size Serial communication port Dual 10/100 network port (LAN/WAN) Support for point-to-point, Point-to-multipoint, and multipoint-to-multipoint networks Master/slave, no-central Mesh Transmitting power adjustable (up to 1 watt) Can be connected through local control port, remote login and web browser Local and remote wireless upgrades via FTP
Advantages:
2 x 2 MIMO
Up to 21 Mbps
6 frequency bands can be set and selected
Multi network port + multi serial port
Point-to-point, Point-to-multipoint, Relay
Small size,Industrial application environment
Product Paramenters
Frequency Software selectable
1625 to 1725 MHz
1780 to 1850 MHz
2020 to 2110 MHz
2200 to 2300 MHz
2300 to 2390 MHz
2400 to 2500 MHz
Error Detection
32 bits of CRC, ARQ
Encryption
128-bit AES (Optional 256-bit)
Ports
 Serial Data/Console Ethernet
USB
Sbus

RS232 TTL level (300bps to 921kbps)
Dual 10/100BaseT IEEE802.3 (LAN/WAN)
2.0 (Future Development)
Firewall
Port Forwarding, Access Control, IP/MAC List
Operating Modes
Point-to-point, Point-to-multipoint, Relay
Diagnostics
Remote Diagnostics, Ping, Traceroute, ARP table, DHCP active leases, IPerf, RSSI
Management
Local Serial Port Console, Telnet, WebUI, SNMP, FTP Upgrade, TFTP, CLI (Command Line Interface)
Rejection
Excellent strong signal jamming & rejection characteristics
Input Voltage
OEM

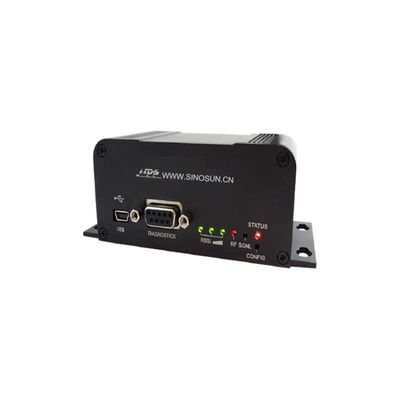

Enclosed

Digital Voltage = 3.3V
RF Voltage = 5V
7-30VDC
Connectors
OEM

Enclosed

Antenna: UFL x2 (ANT1, ANT2)
Data: 80 Pin SMT
Antenna: UFL x2 (ANT1, ANT2)
Data: RJ-45 x2 (Ethernet)
Female DB9 (Serial)
USB Type A
Micro-AB USB (Console)
4 PIN Interlock (Vin)
Environmental
Temperature
Humidity

-40°F to 185°F (-40℃ to +85℃)
5-95%,non-condensing
Weight
OEM
Enclosed

15g
275g
Dimensions
OEM
Enclosed

26.5mm x 51mm x 5.6mm
81mm x 88mm x 35mm
Order Options              pMDDL1624
pMDDL1624-ENC

2X2 MIMO Hexa-Band OEM Data Link
2X2 MIMO Hexa-Band Enclosed Data Link
Price(The specifications are different, the price is different)

1Watts Module pDDL
$900/unit
2Watts×2 Module
$1450/unit
