INET300/INET900 Arduino Digital Radio Module Hopping Networks

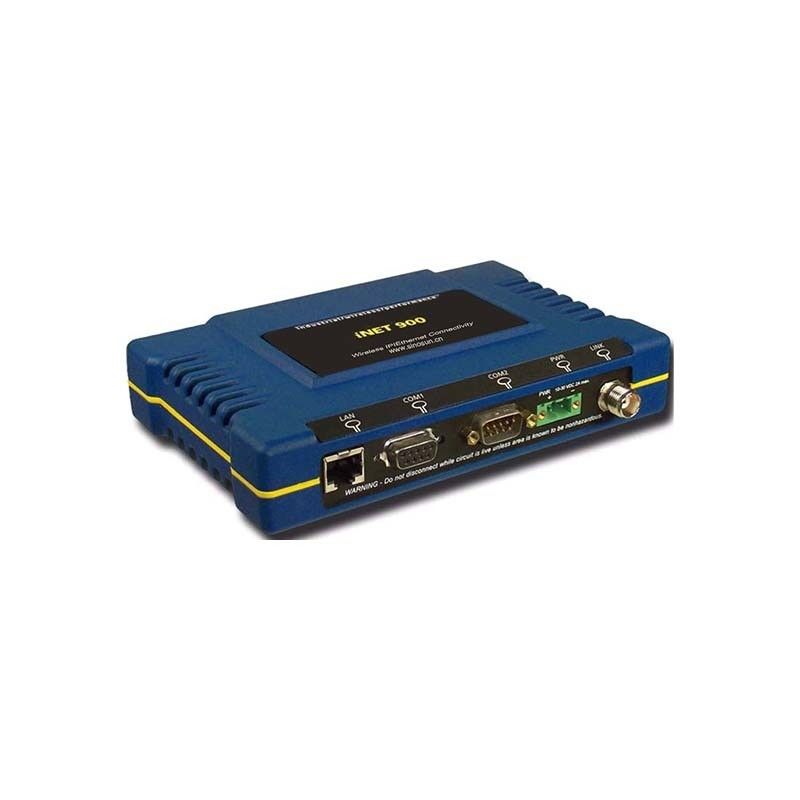

Large Image : INET300/INET900 Arduino Digital Radio Module Hopping Networks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WDS/Sinosun
Model Number:	iNET300/iNET900

Payment & Shipping Terms:

Price:	$990.00/sets >=1 sets
Supply Ability:	1000 Set/Sets per Month

Contact Now

INET300/INET900 Arduino Digital Radio Module Hopping Networks

Description

Type:

Frequency Hopping Networks

Highlight:

INET300 digital radio module

Arduino digital radio module

INET300 module radio arduino

Upgrade to iNET300/iNET900 Frequency Hopping Networks for Better Connectivity

Product Overview

iNET300/iNET900 Frequency Hopping Networks

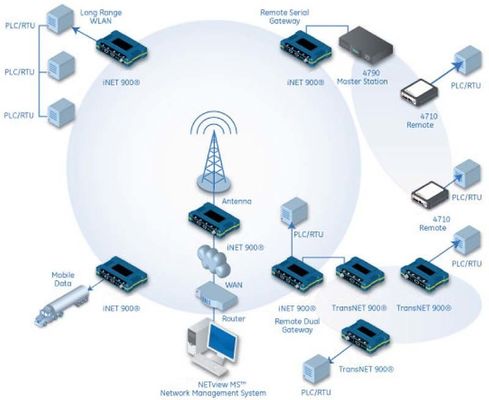

The iNET300/iNET900 is a long-range, high-speed, industrial, wireless IP/Ethernet solution.It allows customers to bring business information over Ethernet or a sreial gateway and onto IP based networks. This includes mission-critical. revenue-generating data from fixed assets such as oil and gas wells, compressor stations, pipelines. fluid storage tanks and utility meters. It also enzbles mobile network access for vehicle based operation. The iNET300/iNET900 uses advanced 340/900MHz FHSS technology for license-free operation in the 336-344/902-928MHz ISM band. It is capable of up to 90 mile range (line-of-sight)2 and up to 512Kbps/1Mbps over-the-air data rate communications. This product is available for use in Class 1, Division 2, Groups A,B,C&D hazardous locations.

Product Paramenters

	General
	Data Rate	256Kbps/512Kbps(iNET300) 512Kbps/1Mbps(iNET900) user configurable air link 1,200-115.2 bps serial ports
	Frequency Band	336-344 MHz ISM band(iNET300) 902-928 MHz ISM band(iNET900)
	Spreading Mode	DTS/FHSS
	Range(iNET300-256Kbps)	Typical fixed range:25 miles Maximum fixed range:90miles Typical mobile range(parked):8miles Typical mobile range(moving):5miles
	Range (iNET300-512Kbps)	Typical fixed range:15 miles Maximum fixed range:25miles
	Range (iNET900-512Kbps)	Typical fixed range:25 miles Maximum fixed range:90miles Typical mobile range(parked):8miles Typical mobile range(moving):5miles
	Range (iNET900-1Mbps)	Typical fixed range:15 miles Maximum fixed range:25miles
	Available Configurations	Access point/remote dual gateway - serial and ethernet
	Remote Ethernet Bridge - Ethernet Only	Remote Serial Gateway - serial only P21 protected station - tow radios in one chassis(cold stangby)
	Radio
	iNET300
	System Gain	150dB @ 256 Kbps 140dB @ 512 Kbps
	Carier Power	0.5 to 5 / 5 to 25 watt
	Output Impedance	50 Ohms
	Occupied Bandwidth	316.5kHz
	Modulation	CPFSK(continuous phase FSK)
	Receiver	-101dBm @ 256 Kbps with 10-6 BER -97dBm @ 512 Kbps with 10-6 BER
	iNET900
	System Gain	139dB @ 512 Kbps 134dB @ 1Mbps
	Carier Power:	0.1 to 1 / 1 to 15 watt
	Output Impedance	50 Ohms
	Occupied Bandwidth	600 kHz
	Modulation	CPFSK(continuous phase FSK)
	Receiver Sensitivity	-97dBm @ 512 Kbps with 10-6 BER -92dBm @1Mbps with 10-6 BER
	Physical Interfaces
	Ethernet	10BaseT,RJ-45
	Serial	COM1:RS-232/485/V.24,DB-9F,DCE COM2:RS-232/485/V.24,DB-9M,DCE
	Anternna	TNC connector(female)
	LEDs	Lan,Com1,Com2,power,link
	Price(The specifications are different, the price is different)
	5W iNET 300/1W iNET 900	$990/unit
	25W iNET 300/15W iNET 900	$1250/unit

Performance:

Ethernet and serial interfaces allow migration of existing serial devices to IP networks Industrial grade performance - UL Class 1 Div 21 & extended temperature range for extreme environments License free - deploy immediately Pluy and play connectivity - configuration requires virtually no setup VLAN capability(802.1Q)allows multiple segregated data filows over a single radio Long range wireless Ethernet Gateway for serial/legacy networks and/or devices to IP network Video and/or voice-over-IP Mobile network access for vehicle based operation
