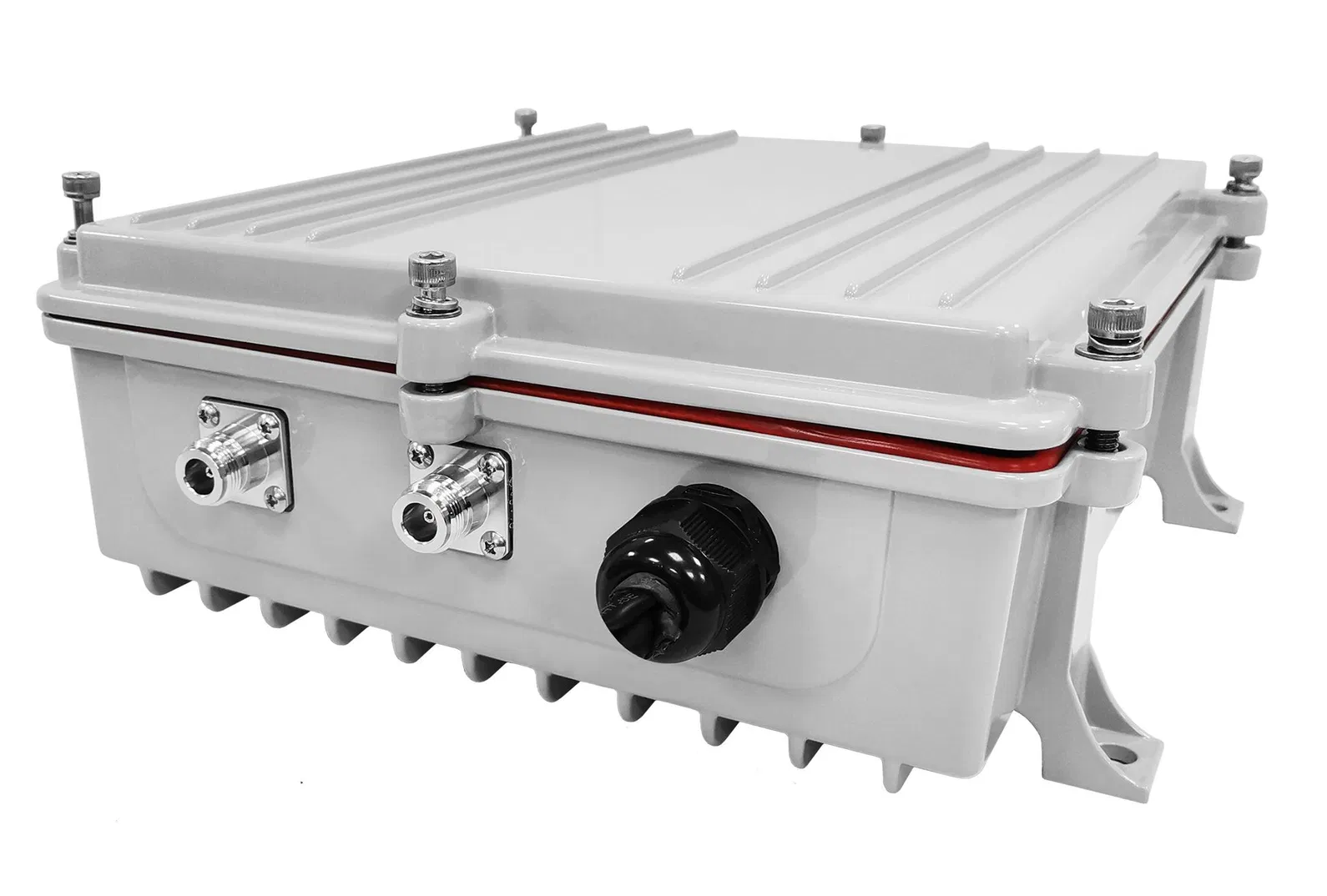

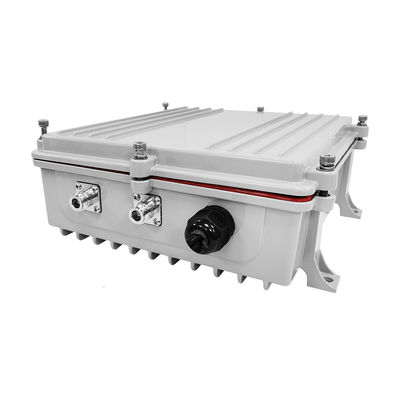

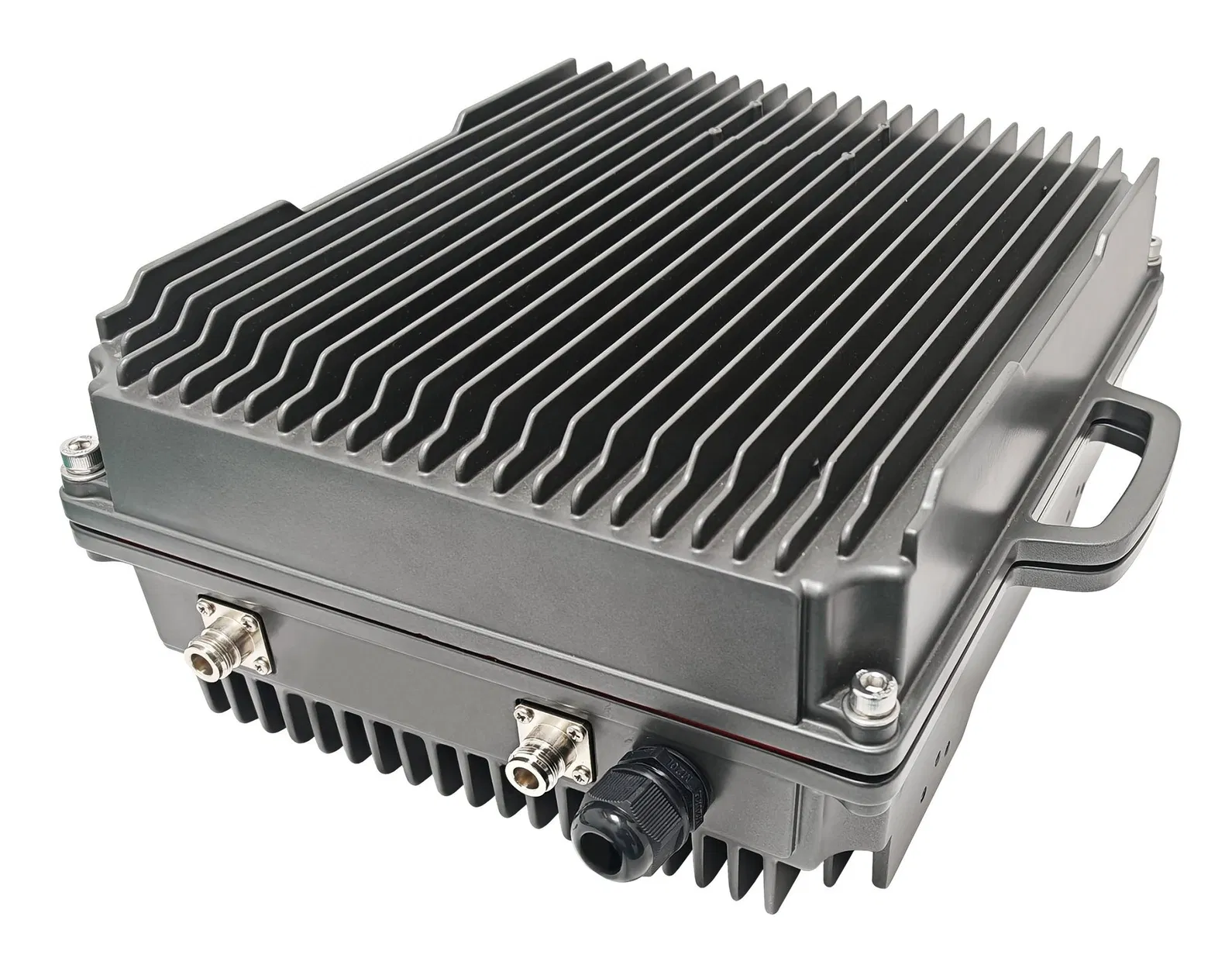

The Latest Generation Of MIMOmesh Broadband Mesh Radio
Performance:
1.Mesh network (self-forming, self-adapting ,self-healing), high-speed throughput
2.Non-visual urban construction,jungle multi-path transmission terrain, effective connection
3.High-speed movement of ground, water and air, effective connection
4.Multiple antenna settings, omnidirectional, high gain orientation or mixing
5.GPS/BD and Multicast Support

Advantages:
1.Increased 4.5 times coverage in densely populated areas
2.Increase the range by 2 times in the visible limit environment
3.Increase 2-4 times data transmission rate
4.The same communication range and transmission data rate, reducing transmission power by 2 times

Significant applications in Non Line of Sight /Multipath Fading environments, video/data/voice critical ommunications:
1.Robot / Unmanned Vehicle, Reconnaissance / Surveillance / Anti-Terrorism / Monitoring
2.Air-to-air & air-to-ground & ground-to-ground, public safety / special operations
3.Urban network, emergency support / normal patrol / traffic management
4.Inside and outside the building, fire fighting / rescue and disaster relief / forest / civil air defense / earthquake
5.TV broadcast wireless audio / video / live broadcast
6.Marine communication / high speed transmission on the opposite side of the ship
7.Low deck wireless network / ship landing
8.Mine / tunnel / basement connection

General
SDR Platform, Waveform	9361+7Z030/7Z035 or 7Z100, Mobile network MANET+MIMO
MIMO Technology	Space-time coding,Receive Diversity,TX /RX beamforming,Spatial multiplexing
Receive Sensitivity	-103dBm@5MHz BW
Channel Bandwidth	1.25/2.5/5/10/20MHz,30/40MHz setting; 80MHz Carrier Aggregation (Dual-antennas with two-frequencies of 40MHz+40MHz for transceiver) optional
Data Rate	1-130Mbps(20MHz BW)/252Mbps (40MHz BW)/350Mbps(40MHz+40MHz of Carrier Aggregation) Adaptive, QoS
Modulation Mode	TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive(Fixed setting optional)
RF Output Power (Support TPC, transmission power control, 1dBm adjustable)	10Watts×2 20Watts×2 40Watts×2
Single Hop Communication Distance	100-300 KM (LOS), 1-30 KM (urban area)
Mode	Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid
Single Hop Delay	Average 10mS(20MHz BW)
Encryption	DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine
Anti-Jamming Mode	Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference
Local/Remote Management	Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/ jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others	The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total transmission rate loss for more than three hops is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second)
Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD,2T2R at single band or 1T2R at dual-band)
BAND	Frequency range
VHF/UHF	360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz
L Band	1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.2*GHz
S Band	2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz
C Band	4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz
	(Note: RF power, Dimensions, Weight is different)
MIIT	336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz
Environmental
Operation Temperature	-40ºC ~+80ºC
Protection Level	IP66,IP67/IP68 Customized

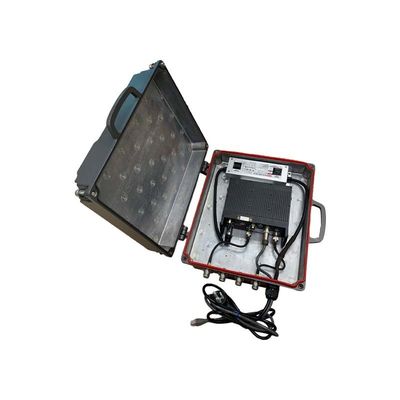

Mechanical

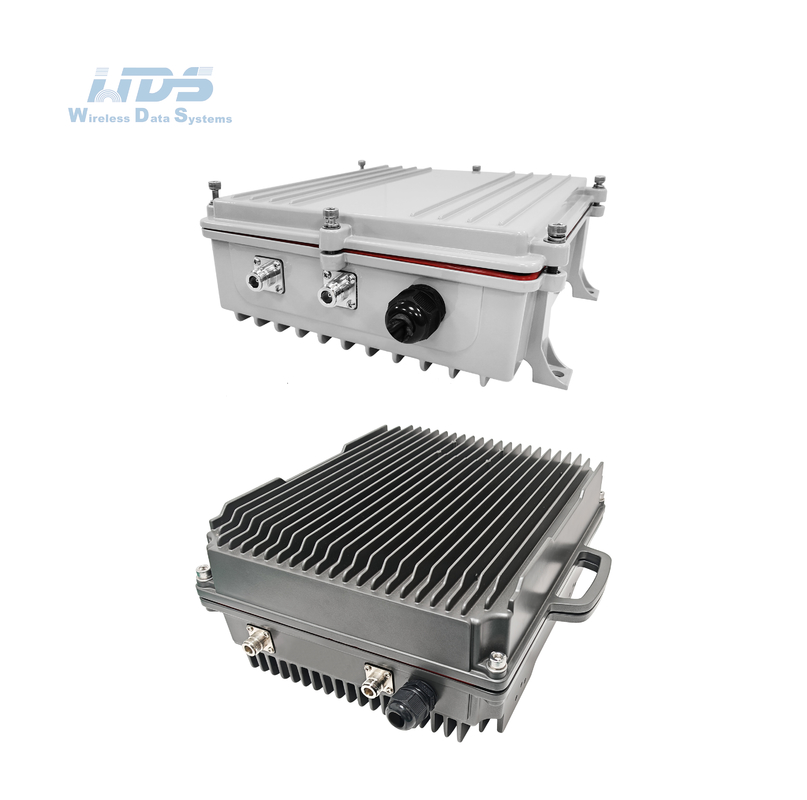

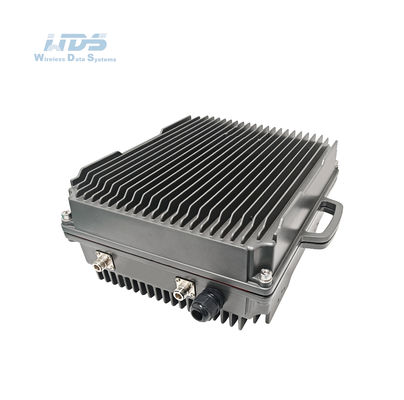

Size/Weight	31.6x29.2x11.0cm/4.35kg (White) 35.5x35.1x15.0cm/10.9kg (Iron Gray)

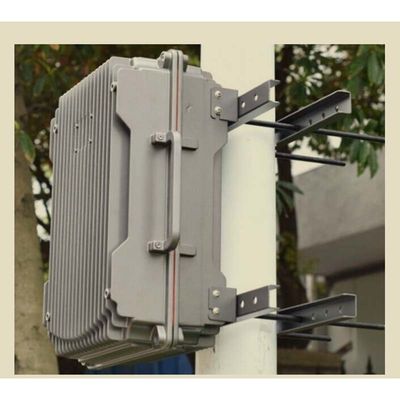

Installation/Color	4 Mounting Holes/Black, Iron Gray,Army Green Optional
Power
Supply Voltage	18-24VDC (10Watts×2) 18-36VDC (20Watts×2/40Watts×2)
Power consumption	Operation 3-6A/Standby 0.7-0.9A@24V (10Watts×2) Operation 6-7A/Standby 0.7-0.9A@24V (20Watts×2/40Watts×2)
Power Selection	Main Cable
Interface
Basic interface	2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/Auxiliary interface	MIC,SP,PTT,GND,RS485/422,USB2.0OTG
Network Extension	Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
Video Extension	Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator	Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down
RSSI Link Indicator	Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down
Management Interface/ Control Interface	Web-based network management/GUI, API secondary development interface/SNMP

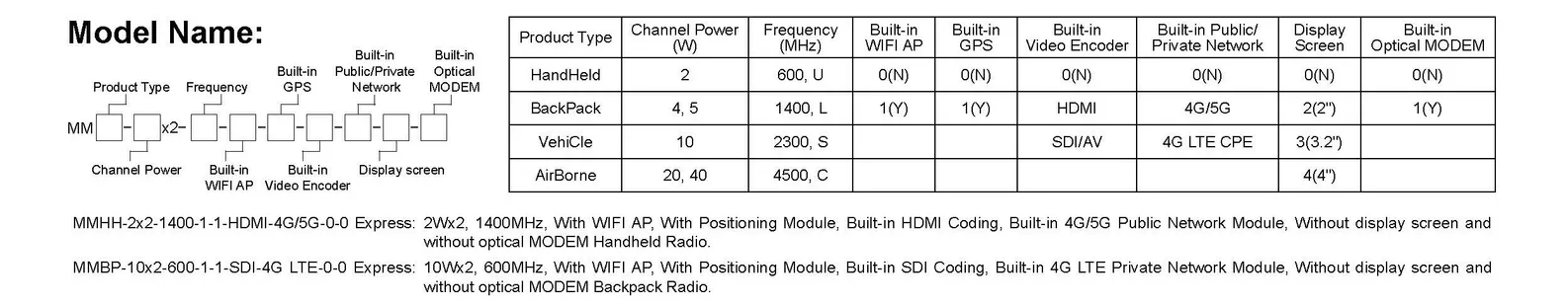

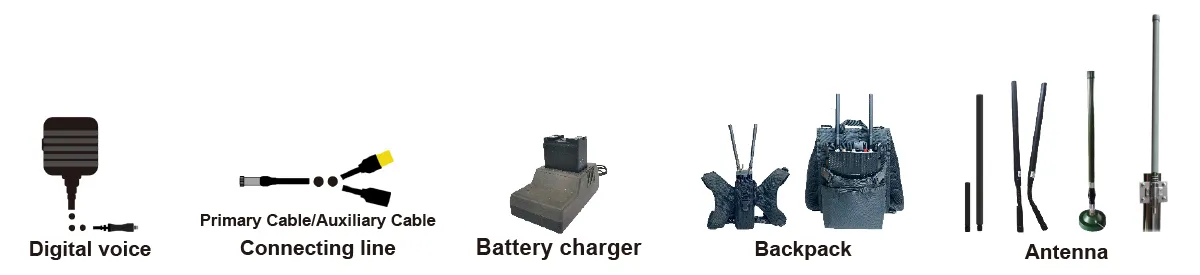

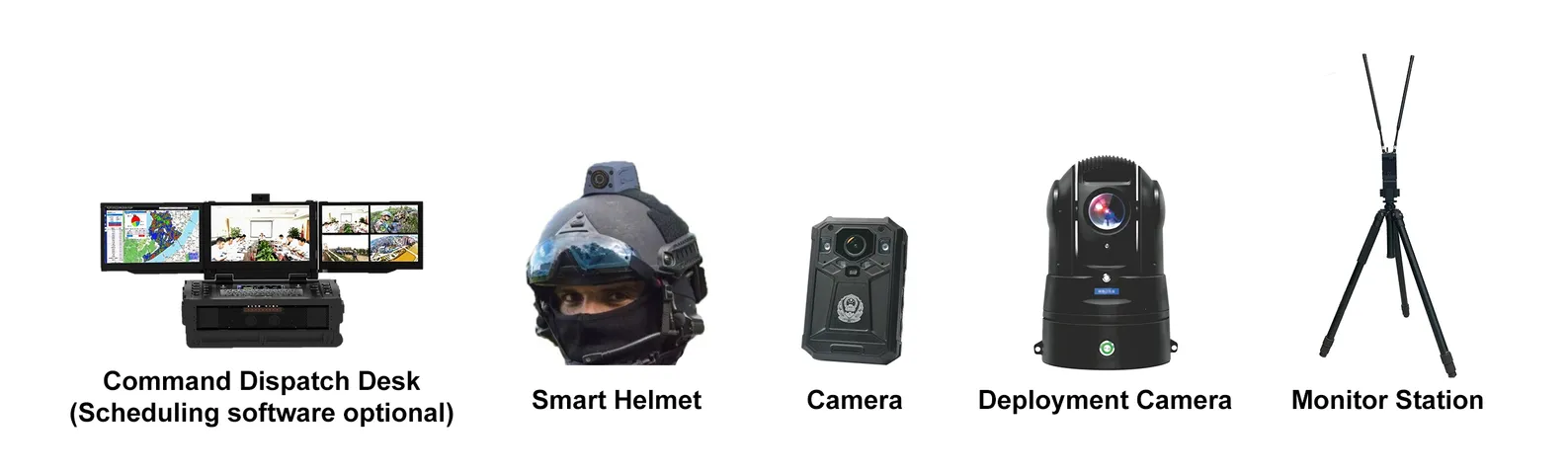

Accessories:
