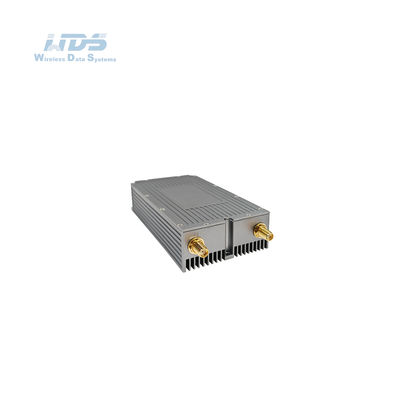

Mesh Radio-Advanced Connectivity Solutions-Smartmesh Airborne Radio

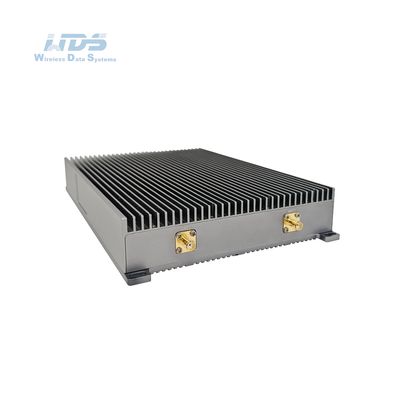

Large Image : Mesh Radio-Advanced Connectivity Solutions-Smartmesh Airborne Radio

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	WDS/Sinosun
Model Number:	SM1x2-1400

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$2050/unit
Supply Ability:	1000 Set/Sets per Month

Contact Now

Mesh Radio-Advanced Connectivity Solutions-Smartmesh Airborne Radio

Description

Type:

Airborne

Highlight:

Airborne Radio SmartMesh Network

Airborne Radio SmartMesh

SmartMesh Airborne Radio

Mesh Radio-SMARTmesh Airborne Radio

The SmartMesh Broadband Mesh Radio utilizes the latest generation of radio communication network technology and the most advanced devices with high speed processing, high integration and low power consumption. It is compact in design and can be used hand-held, backpack, vehicular, airborne or built in for integrated use with a maximum of 6 watts/30 watts/20 watts/40 watts of transmitting power,realizing remote broadband wireless data transmission and the most powerful and flexible networking.
This series of products for users, at the top, underground, large complex urban complex building, and earthquakes, floods, landslides and other major catastrophic natural disaster accident rescue under complicated environment, rapid automatic forming a flexible and reliable dynamic routing/jump relay multipoint to multipoint no centre, self-organizing mesh wireless communication network, It provides fast and flexible special wireless communication for hd video, intercom voice, IP network/serial asynchronous data and other services, provides key emergency communication for field joint operation command, and powerful comprehensive data link for uav, unmanned vehicle and other intelligent equipment.
Mesh Radio-Advanced Connectivity Solutions-Smartmesh Airborne Radio 0

Mesh Radio-Advanced Connectivity Solutions-Smartmesh Airborne Radio 0

Mesh Radio-Advanced Connectivity Solutions-Smartmesh Airborne Radio 1

Main features of SmartMesh broadband mesh radio:
RF performance:
1.One button boot, set up anywhere.Long distance, high throughput
2.Anti interference COFDM / broadband carrier frequency hopping can improve link quality in complex RF environment
3.Excellent multipath and NLOS performance
4.Adaptive radio modulation from QPSK to 64QAM is continuously optimized per packet to optimize link performance in dynamic environments
5.Software defines channel sizes for efficient reuse of spectrum
6.The software defines the operating frequency of the global application
7.Convolution coding, forward error correction (FEC), ACK retransmission, maximum ratio merge, spatial multiplexing, and space-time block coding 8.are used for robust data transmission over noise spectrum
9.Time Division Duplex (TDD) for Bidirectional Transmission
Network performance:
1.Self-organizing, self-healing mobile Mesh networks, multi-hop routing, dynamic topology
2.Ultra-Reliable Low Delay Channel for Command and Control (URLLC)
3.Optimizing video streaming media channels on the same wireless link
5.End-to-end IP architecture for unicast and multicast traffic
6.Data transmitted over the air can be encrypted with up to 256-bit AES
7.ake advantage of the most advanced and scalable OpenWrt ecosystem
8.Embedded network management APIs
Other:
1.Minimum Size, Weight, and Power(SWAP) for Mobile Device Applications
2.Ethernet and UART interfaces can be easily integrated into different system architectures
3.Rugged earthquake-resistant construction MIL-STD-202G, industrial temperature range

SmartMesh Airborne Radio Specifications

General
SDR Platform, Waveform	9363 or 9361+7Z020, Mobile Network MANET
MIMO Technology	Space-time coding,Receive Diversity,TX /RX beamforming
Receive Sensitivity	-103dBm@5MHz BW
Channel Bandwidth	1.25/2.5/5/10/20MHz setting; Supports transmission and reception with different channel bandwidths, achieving mixed broadband and narrowband
Data Rate	1-70Mbps(10MHz BW) Adaptive, QoS
Modulation Mode	TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive
RF Output Power (Support TPC, transmission power control,1dBm adjustable)	0.25Watts x2 0.5(1)Watts x2 1Watts x2 2Watts x2 4(5)Watts x2 10(20)Watts x2
Single Hop Communication Distance	Air to G. 3-15KM, 0.25Watts x2; 10-30KM, 0.5Watts x2; 20~50KM, 1Watts x2; 50~100KM, 2Watts x2; 100~150KM, 4Watts x2; 100~200KM, 5Watts x2; 150~300KM, 10Watts x2; 250~500KM, 20Watts x2
Mode	Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2 or 3 of Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid
Single Hop Delay	Average 10mS (20MHz BW)
Encryption	DES, AES128/256 ,SNOW3G/ZUC optional,Chip /TF card encryption customized
Anti-Jamming Mode	Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference
Local/Remote Management	Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others	The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second)
Bands(300M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD, 2T2R at single band)
BAND	Frequency range
VHF/UHF	360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz
L Band	1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*GHz
S Band	2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz
C Band	4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz
	(Note: RF power, Dimensions, Weight is different)
MIIT	336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz
Environmental
Operation Temperature	-40ºC ~+80ºC
Protection Level	IP66,IP67/IP68 Customized
Mechanical

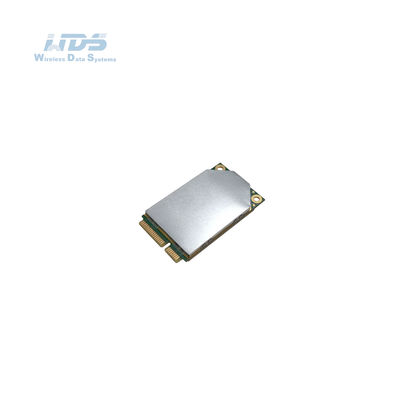

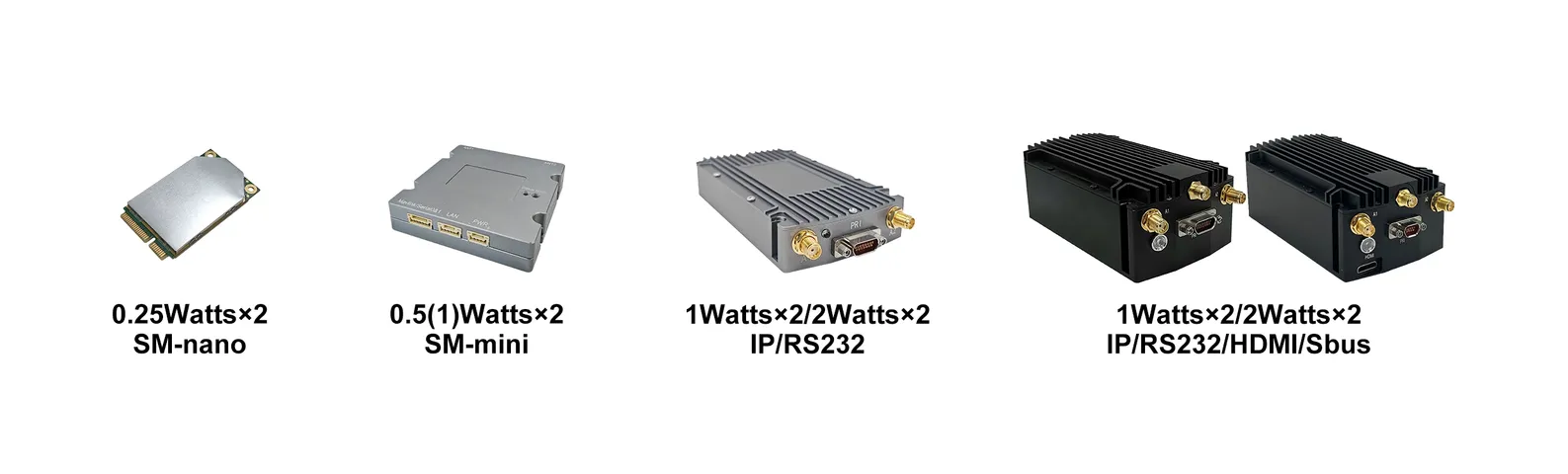

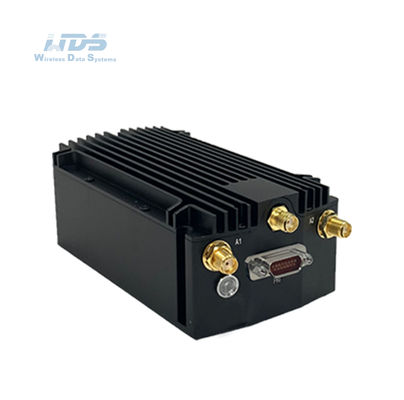

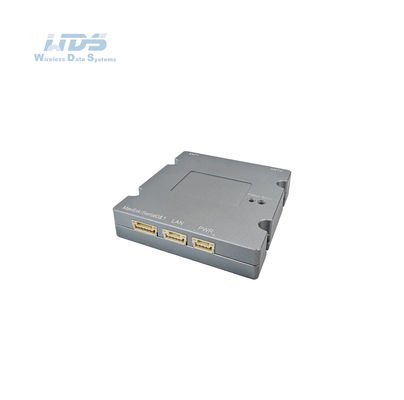

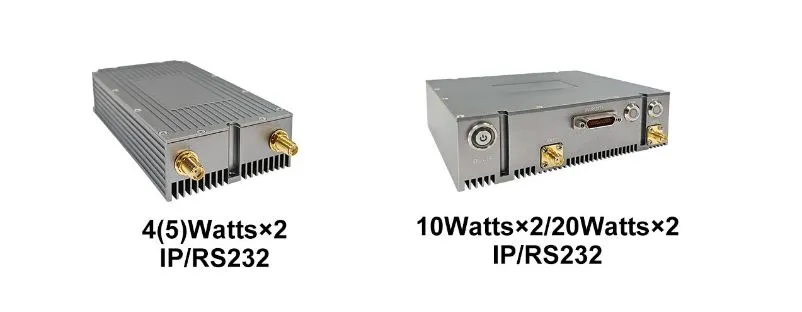

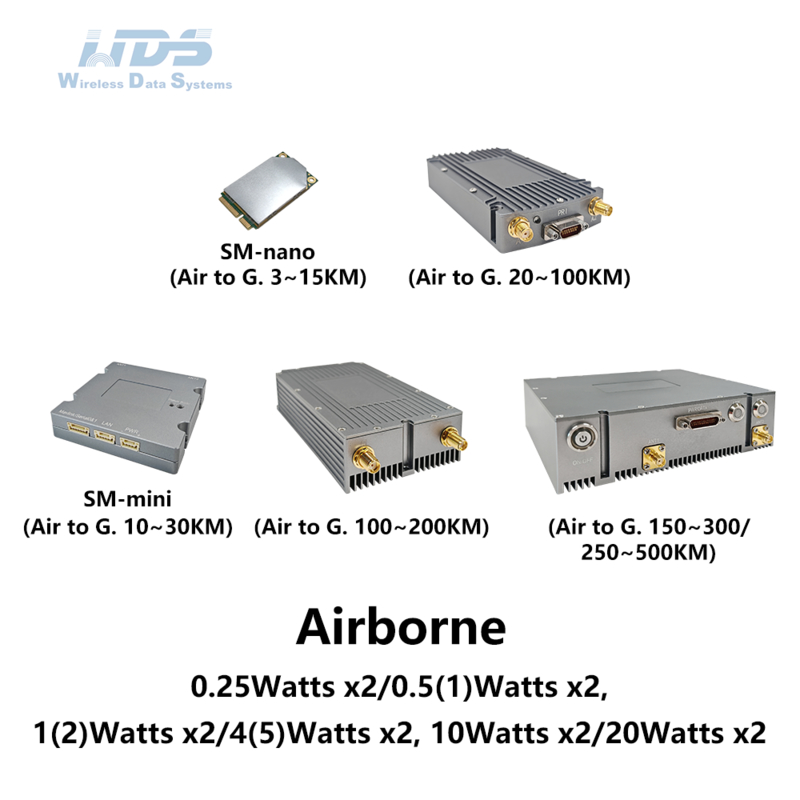

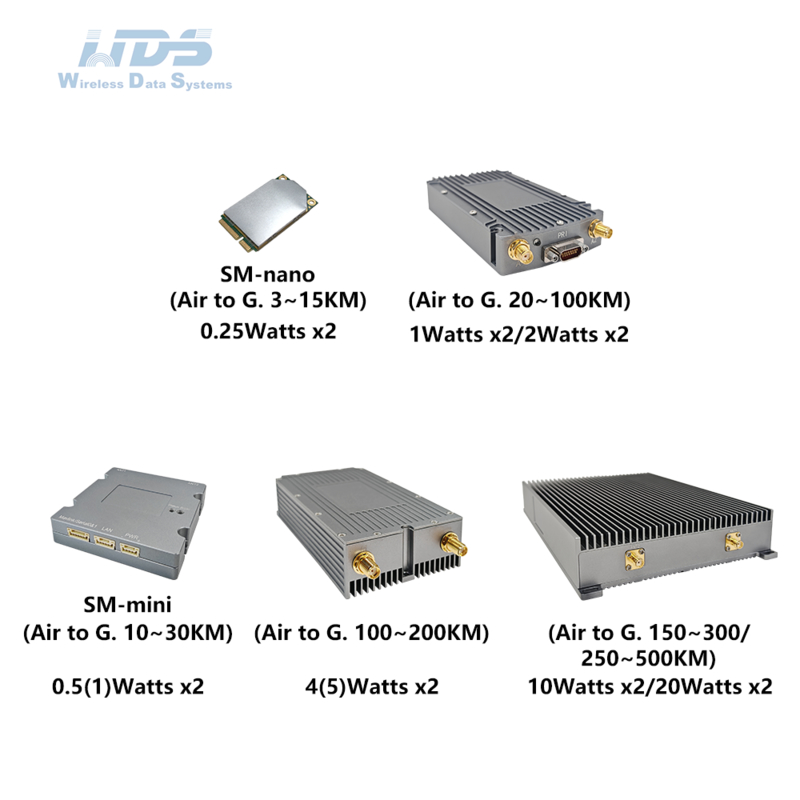

Size/Weight	5.1x3.0x0.7cm/14g, 0.25Watts x2 Airborne Radio, SM-nano 6.0x4.8x1.1cm/46g, 0.5(1)Watts x2 Airborne Radio, SM-mini 6.0x5.8x1.3cm/60g, 0.5(1)Watts x2 Airborne Radio, SM-mini 11.7x6.2x2.0cm/160g, 1(2)Watts x2 Airborne Radio-Iron Gray 13.8x6.2x2.7cm/225, 4(5)Watts x2 Airborne Radio-Iron Gray 12.8x13.4x3.8cm/598g, 10Watts x2/20Watts x2 Airborne Radio-Iron Gray 14.2x14.0x5.0cm/962g, 10Watts x2/20Watts x2 Airborne Radio-Black
Installation/Color	4 Mounting Holes/Black, Iron Gray,Army Green Optional
Power
Supply Voltage	3.5-5VDC, 0.25Watts x2, SM-nano 9-32VDC, 0.5Watts x2, SM-mini 9-39VDC, 1Watts x2 12-36VDC, 2Watts x2/4(5)Watts x2 18-32VDC ,10Watts x2/20Watts x2
Power consumption	Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts x2, SM-nano Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2, SM-mini Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2 Operation 2-4A/Standby 0.5-0.7A@12V, 4(5)Watts×2 Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2 Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2
Power Selection	Power Supply by Main Cable
Interface

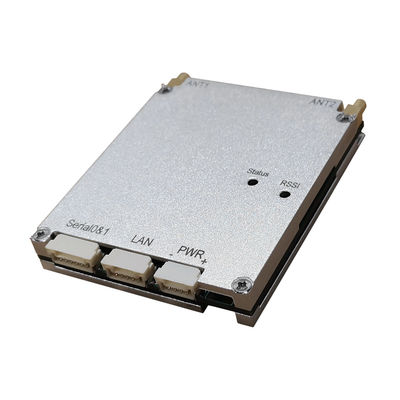

Basic interface	2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/Auxiliary interface	MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG
Network Extension	Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

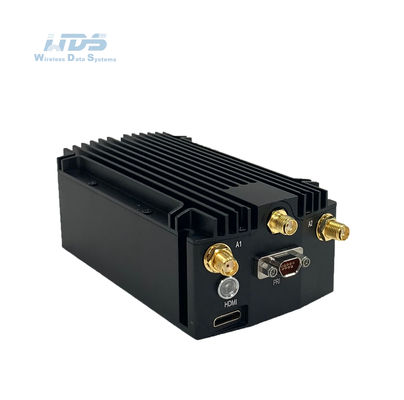

Video Extension	Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator	Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down
RSSI Link Indicator	Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down
Management Interface/ Control Interface	Web-based network management/GUI, API secondary development interface/SNMP
