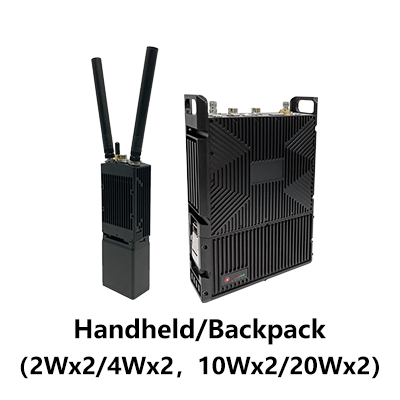

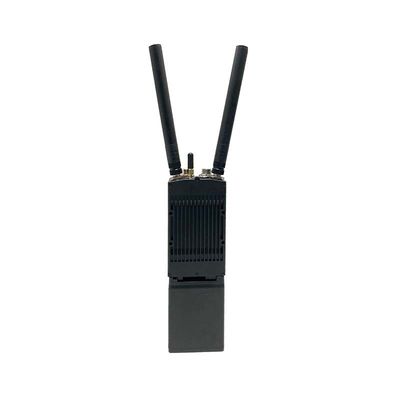

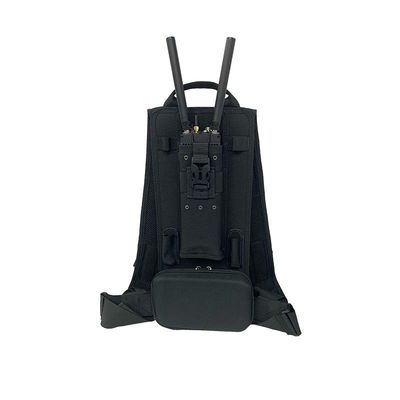

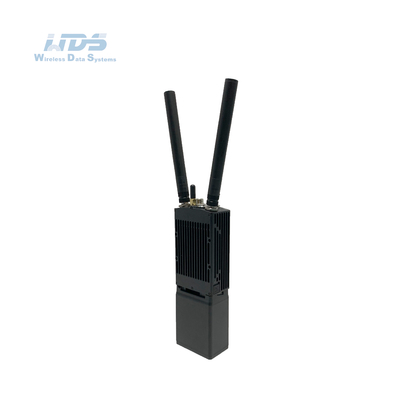

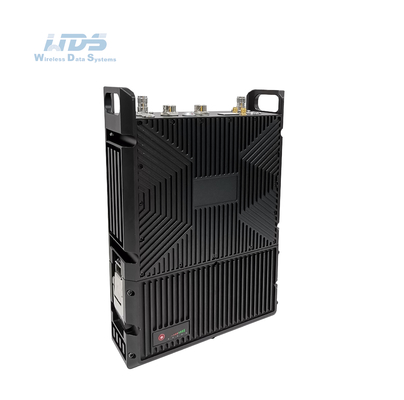

DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio

DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio
DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio

Large Image :  DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio

Product Details:
Place of Origin: Guangdong, China
Brand Name: WDS/Sinosun
Model Number: DDLHH/DDLBP
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $2,450.00/1 unit
Supply Ability: 1000 unit/units per Month
Contact Now

DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio

Description
Type: Airborne
Highlight:

DDL Handheld mesh radio

,

OEM mesh radio

,

DDL Handheld mesh communication devices

DDLmesh Series of Wireless Digital Data Link
Ultra low delay, Long range,Bidirectional multi channel Radio

The new DDL series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. DDL series based on SDR software defined radio platform with 2X2 MIMO, It adopts Beamforming, Maximal Ratio Combining (MRC), Maximal Likelihood(ML) algorithm, low density parity check (LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming.
DDL series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.
The application system is mainly composed of the airborne radio with the airborne camera, and the ground radio with the ground computer, as well as the necessary accessories (including power supply, antenna feed system, connection lines and connectors, etc.).
The system can simultaneously transmit three IP/HDMI/SDI/CVBS HD video and multiple two-way transparent data (such as flight control/pod, Beidou /GPS, voice, etc.). AES encryption ensures transmission security.
Radio the transmission power of the station can reach up to 40W, providing a stable and reliable communication link.

Features:
1. 400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km.
2. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video.
3. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video.
4. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN.
5. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP.
6. Low power consumption. Tiny volume, lightweight structure, body building for UAV.

DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio 0

Specifications

General
SDR Platform, Waveform 9363 or 9361+7Z020, Mobile Network MANET
MIMO Technology Space-time coding,Receive Diversity,TX /RX beamforming
Receive Sensitivity -103dBm@5MHz BW
Channel Bandwidth 1.25/2.5/5/10/20MHz Broadband, 250k/500k/1MHz narrowband setting
Data Rate 1-70Mbps(20MHz BW) Broadband, 50-1000kbp narrowband Adaptive, QoS
Modulation Mode TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional)
RF Output Power
(Support TPC, transmission power control)

2Watts x2 (Handheld/ Radio)
4Watts x2(Handheld/ Radio)

10Watts x2 (Backpack Radio)

20Watts x2(Backpack Radio)
Single Hop
Communication Distance		 100-300 KM(LOS), 1-30 KM(urban area)
Mode of Communication Decentralized point-to-point, point-to-many and many-to-many communications with cross-connection, supporting small-scale (within 8 nodes) MESH networking with dynamic routing and multi-hop relay
Single Hop Delay Average 10mS(20MHz BW)
Encryption DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine
Anti-Jamming Mode Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional
Local/Remote Management Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional
Others The boot time is less than 28 seconds, and the network access/update/switching time is less than 1 second.
The network size is less than 8 nodes.
Automatic carrier tracking, adapting to Doppler frequency shift of ±6kHz frequency deviation, supporting mobile communications at speeds above 7200 kilometers per hour (Mach 6, 2000 meters per second).
Bands(300M-6GHz customizable. Same frequency or different frequency of 2T2R at single band, or 1T2R at dual-band selectable/smart change)
BAND Frequency range
VHF/UHF 360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz
L Band 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*GHz
S Band 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz
C Band 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz
  (Note: RF power, Dimensions, Weight is different)
MIIT 336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz
Environmental
Operation Temperature -40ºC ~+80ºC
Protection Level IP66, IP67/IP68 Customized
Mechanical
Size/Weight

19.0x6.8x3.8cm/769g, with 11.1V/77.7Wh battery Handheld

27.5x18.9x6.2cm/4.15kg, with 22.2V/213Wh battery Backpack
Installation/Color 4 Mounting Holes/Black,Iron Gray,Army Green Optional
Power
Supply Voltage

12-36VDC, 2Watts x2/4Watts x2

18-32VDC, 10Watts x2/20Watts x2
Power consumption

Operation 1-2A/Standby 0.5-0.7A@12V, 2Watts×2
Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2

Operation 3-6A/Standby 0.7-0.9A@16.8V, 10Watts x2
Operation 6-7A/Standby 0.7-0.9A@20V, 20Watts x2
Power Selection Power Supply by Main Cable
Batteries 8-10/6-8 hours for 114/77.7Wh (Handheld Radio) polymer lithium battery
Interface
Basic interface 2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input
Push to talk/
Auxiliary interface		 MIC, SP, PTT, GND, RS485/422, USB2.0 OTG
Network Extension Optional Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite
Video Extension Optional Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1
Link Status Indicator Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected
Blinking green - Voice PTT is down
RSSI Link Indicator Steady green - The link quality is excellent
Steady blue - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor or link is down
Management Interface/
Control Interface		 Web-based network management/GUI, API for secondary development interface/SNMP

DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio 1Stick antenna, Vehicle mounted antenna, All-Round high gain antenna, Directional high gain antenna, Long distance communication directional antenna automatic tracking platform

DDLmesh Series of Wireless Digital Data Link of Handheld Radio&Backpack Radio 2
