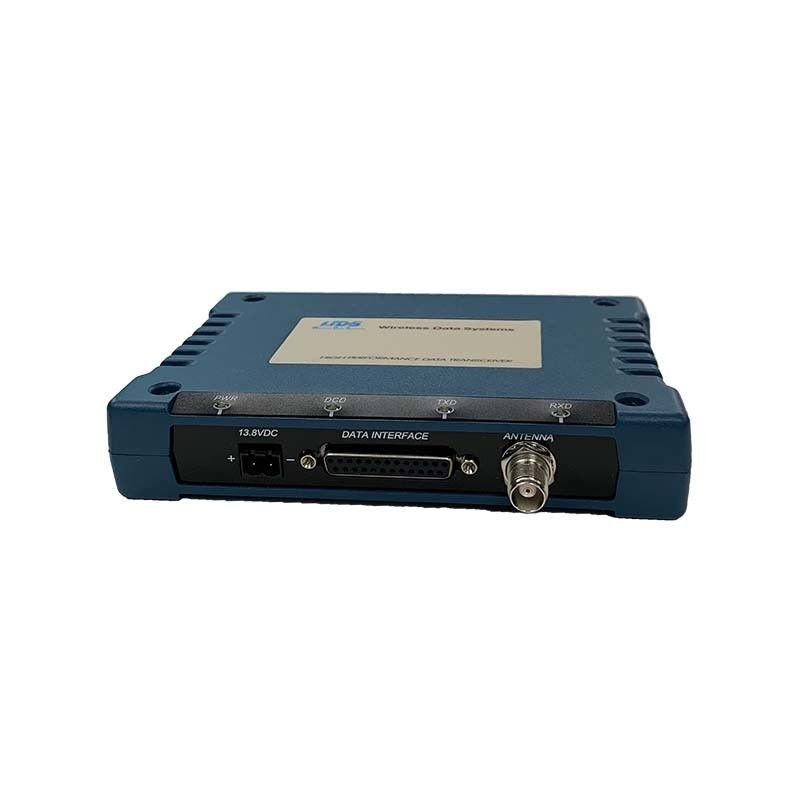

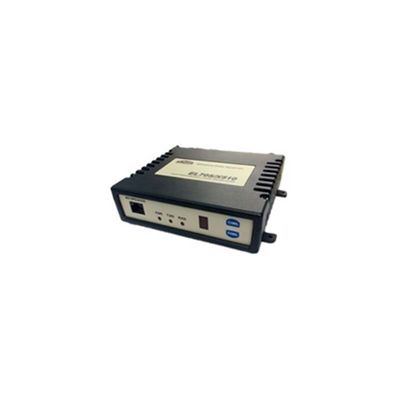

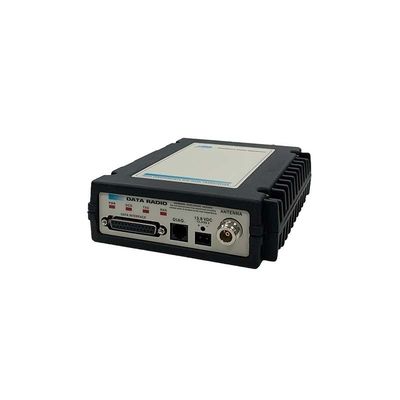

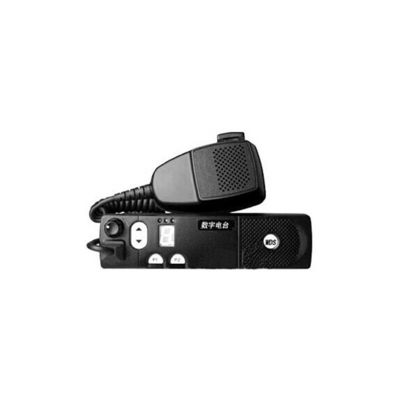

Smart TRM Digital Radio Transmitter micro sDR Transceiver Module

Smart TRM Digital Radio Transmitter micro sDR Transceiver Module
Smart TRM Digital Radio Transmitter micro sDR Transceiver Module Smart TRM Digital Radio Transmitter micro sDR Transceiver Module Smart TRM Digital Radio Transmitter micro sDR Transceiver Module Smart TRM Digital Radio Transmitter micro sDR Transceiver Module

Large Image :  Smart TRM Digital Radio Transmitter micro sDR Transceiver Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: WDS/Sinosun
Model Number: 1510/2510
Payment & Shipping Terms:
Price: $280.00/sets >=1 sets
Supply Ability: 1000 Set/Sets per Month
Contact Now

Smart TRM Digital Radio Transmitter micro sDR Transceiver Module

Description
Type: Data Series Transceiver
Highlight:

digital radio transmitter Module

,

TRM digital radio transmitter

,

TRM micro sdr transceiver

Smart Data Series Transceiver TRM Digital Data Module for Fast and Secure Data Transfer
Product Overview



Smart Data Series Transceiver /TRM Digital Data Module


DATA Series Product Over view The DATA series product is complete family of value priced radios for private point-multipoint SCADA and other telemetry applications.They operate at the 130-174MHz,220-222MHz,330-512MHz frequency bands.The DATA series are available as board level product or as a packaged unit.The board level product allows Lottery Terminal.The packaged unit comes in a small case that is ready to plug in power,an antenna and your terminal device. The DATA Series transceivers are designed to help you reduce overall communica-tions cost by providing low power consumption,small size and an inexpensive RF connector. All DATA series models are available for private labeling. DATA Series Board Level Units The DATA sreies board level unit is a single board measuring approximately 3.5 x 4.75 inches(8.90 x 12.07cm).It comes complete with RF connector and RS-232/485 or TTL interface via a header connector or an edge mounted DB-25.An optional piggyback board is available for RS-485/422 applications. The board level ubit is fully type accepted and includes its own RF shuelding.It may be inserted into your device as simply an internal radio, or it can be tightly integrated within the product. By using the processor in your RTU to access radio parameters you bilities.LEDs provide rapid assessment of operating status. The available configurations are follows: OEM board TTL,8 Vdc input OEM board RS-232,10-30 Vdc input OEM board TTL and pinggybacked RS-485,10-30 Vdc input Digital Modems: 9600bps in 12.5kHz channel 19.2kbps in 25kHz channel Analog Modes: Bell 202 External Modem(4 wire audio) with VOX, switchable Pre-and De-emphasis DATA Series Packaged Units DATA Series Packaged Units are the board level unit in a small extruded case,and are available in either RS-232 or RS-485 user interface and a 10-30Vdc input voltage.


Smart TRM Digital Radio Transmitter micro sDR Transceiver Module 0
Product Paramenters
Operating frequency

WDS1510/MDS EL7051
 130-174 MHz
WDS2510/MDS EL7052
 220-240 MHz
WDS4510/MDS EL7054
 330-512 MHz
WDS9510/MDS EL7059
 800-960 MHz
TRM/TRS/TRA400
 410-470 MHz
TRM/TRS/TRA230
 220-240 MHz
Radio Type


Synthesized, Simplex or Half Duplex, Channel bandwidth occupied 12.5 KHz , Split Freq or Simplex
Primary Powerac

Voltage
10-30VDC (2W), 3.3V (TRM)
10-16VDC (25W), 3.3-45V (TRS)
RX Supple Current
75mA@13.8VDC
TX Supple Current
 480mA@13.8VDC, 2W
Circuit Protection
15A self recovery fuse, built-in polarity reverse protection, power input protection
Data Interface

Interface
RS-232/485 Through DB-25 Connector
Interface Port Baud Rates
1.2-19.2kbps
Over-the-Air Data Rate
9.6kbps (Data series) 4.8/9.6/19.2kbps (TRX series)
Data Delay
＜15ms
Transmission

Frequency Range
130-174MHz, 220-240MHz,
330- 512MHz, 800-960MHz (Data series),
410-470MHz, 2 20-240MHz (TRX series)
Stepped Frequency
5/6.25KHz
Modulation Mode
4FSK (Data series)/ GMSK (TRX series)
Carrier Power
100mW, 1W, 2W/5W, 15W, 25W
Duty Cycle
50% (100% additional radiator)
Frequency Stability
1.5ppm,-40℃ to +70℃
Adjacent Channel Radiation
-65dB
Timeout Timer
1-255s
Transmitter Keying
On data
Start Time
＜7m
Reception

Frequency Range
130-174MHz, 220-240MHz,
330-512MHz, 800-960MHz (Data series),
410-470MHz, 220-240MHz (TRX series)
Type
Double Conversion Superheterodyne
Frequency Stability
1.5ppm,-40℃ to +70℃
Radiation and Image Suppression
-70dB
Sensitivity
12dB Sinad@ -116dBm(19.2kbps),
12dB Sinad@-119dBm(4.8kbps)
Data Performance
1x100-6 @ -108 dBm
lntermodulation Rejection
-70 dB Minimum
Adjacent Channel Selectivity
60dB
Environmental

Temperature Range
-40℃ to +70℃
Humidity Range
95% @ 40 ℃ non condensing
Weight

Integrated board
135g (2W), 38g (TRS), 34g (TRM)
Enclosed
821g (blue), 1000g (black)
Size

Board Size
11.4x9.7x1.9cm (2W), 7.0x1.3x4.8cm (TRM), 8.3x1.3x4.8cm (TRS)
Enclosed Size
16.9x3.4x11cm (blue), 18.4x14.3x5cm (black)
Enclosed Type
Aluminum
Parts
Built in power amplifier module (maximum 25W)
 PTT (Push-to-Talk)
Multichannel board (16CH)
Ethernet (IP) upgrade interface board
Price(The specifications are different, the price is different)

2510 ntegrated board
$280/unit
2510 Enclosed
$350/unit
Performance:
400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP. Low power consumption. Tiny volume, lightweight structure, body building for UAV.
Advantages:
FEATURES DATA series quality and performance in a value priced data transceiver Worldwide product FCC and IC 400 MHz ETSI 400 MHz(4800 bps) SRRC IDH99FJ0 138 200MHz China Small size for internal integration as OEM product 9600bps throughput and Low current consumption and sleep modes for solar powered applications Flash memory software storage for futuer upgrades Keys on data Keyline output for keying external devices on receive Noise-free squelch CD for CSMA applications Easy integration into any OEM equipment Configures via HHT,WDS Configuration Software or OEM processor
