Product Details:
|
| Type: | Radio/Module | ||
|---|---|---|---|
| Highlight: | SDR400 cofdm receiver,Hopping cofdm receiver,SDR400 ebyte data transceiver |
||
|
Wireless Specifications
|
|
|
|
Frequency
|
410-480MHz/840-845MHz/902-928MHz
|
|
|
Spereading Method/ Modulation Scheme
|
Frequency Hopping GMSK,2GFSK,4GFSK,QPSK
|
|
|
Forward Error Correction
|
Hamming,BCH,Golay,Reed-Solomon,Viterbi
|
|
|
Error Detection
|
32 bits of CRC,ARQ
|
|
|
Encryption
|
Optional(see-AES option)
|
|
|
Range
|
100km
|
|
|
Serial Interface
|
3.3V CMOS,RS232/485(Selectble)
|
|
|
Serial Baud Rate
|
300bps to 230.4kbps
|
|
|
Operating Modes
|
Point-to-Point,Point-to-Multipoint, TDMA,Store&For-ward Repeater, Peer-to-Peer
|
|
|
Signals Interface
|
RSSI LEDs,Tx/Rx LEDs,Reset ,Config, Wake-up,RSmode,4 Digital lnputs/ Outputs,1Analog lnput,1Analog Output
|
|
|
Remote Diagnostics
|
Battery Voltage,Temperature,RSSI, Packet Statistics
|
|
|
Rejection
|
Adjacent Channel @ 400 MHz:60 dB Alternate Channel @ 400 MHz:70 dB Adjacent Channel @ 900 MHz:57 dB Alternate Channel @ 900 MHz:65
dB |
|
|
Core Voltage
|
3.3VDC is required for 1W
3.6VDC is required for 2W
|
|
|
Power Consumption (3.3V)
|
Sleep:＜1mA(Future)
dle: 20mA
Rx: 45mA to 98mA
Tx Peak: 2A
|
|
|
Connectors
|
Antenna:UFL
Data :80 Pin SMT
|
|
|
Environmental
|
-55℃~+85℃
5~95% humidity,non-condensing
|
|
|
Weight
|
Approx. 5 grams
|
|
|
Dimensions
|
Approx. 1.05"x1.3"x.13"
(26.5mm x 33mm x 3.5mm)
|
|
|
Approvals
|
FCC Part 15.247 Pending
IC RSS210 Pending
FCC Part 15.90 Pending
IC RSS119 Pending
CE Pending
|
|
|
Price(The specifications are different, the price is different)
|
|
|
|

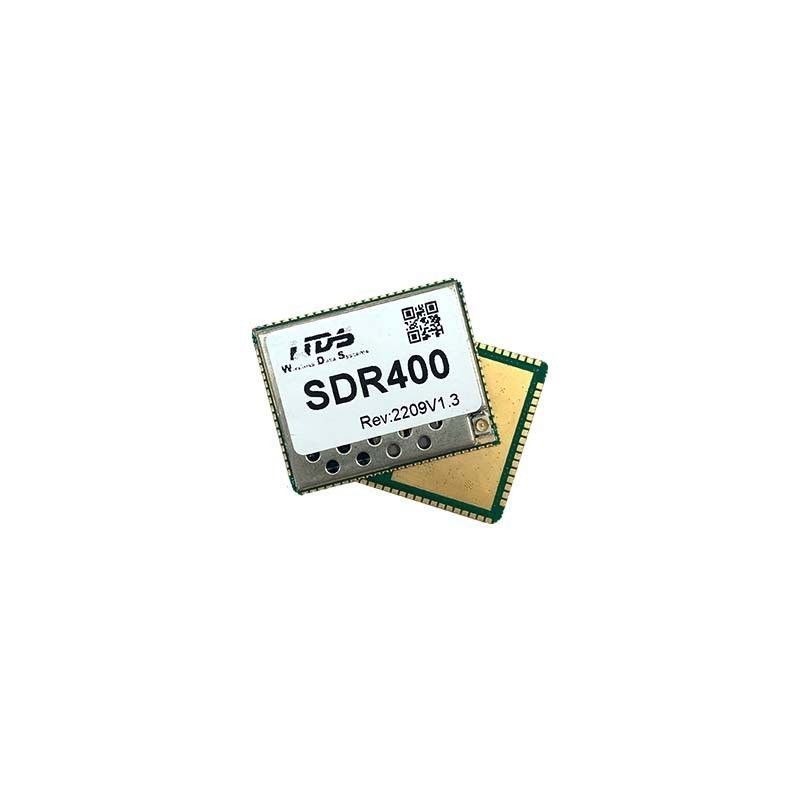

2W SDR400 Module
|
$199/unit
|
|
|

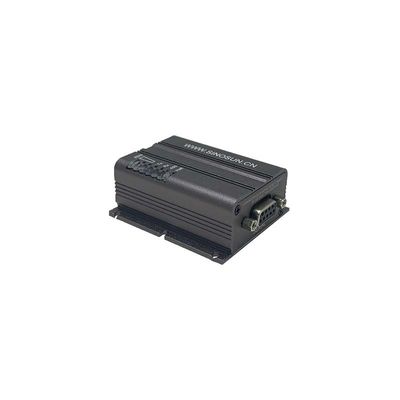

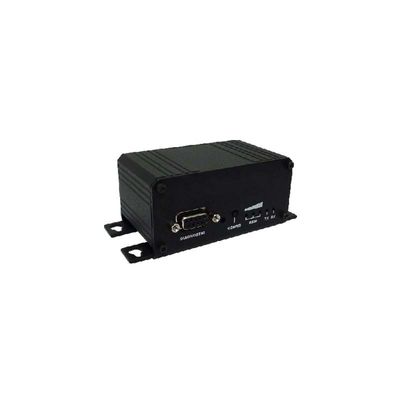

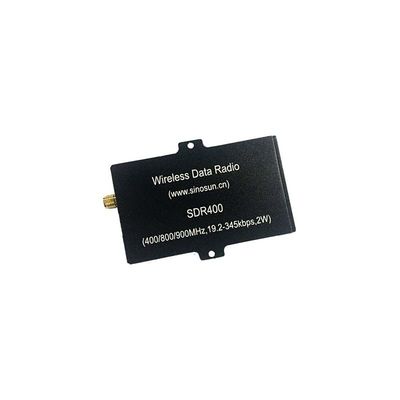

2W SDR400 Enclosed
|
$299/unit
|
|
