Product Details:
|
| Type: | Module | ||
|---|---|---|---|
| Highlight: | MM2 digital radio module,Cofdm digital radio module,MM2 cofdm transceiver |
||
|
Transmitter
|
|
|
|
Frequency Range
|
902-928M/225-400(228-235)M/310-390M/410-480M/1.35-1.39GHz(FHSS)(DTS)
|
|
|
Output Power
|
10 mW to 1 W,1 to 2W (Military & rxport versions only)
|
|
|
Range - Line of Sight
|
60miles
|
|
|
Modulation
|
2 level GFSK
|
|
|
RF Data Rate
|
Selectable speeds 115.2 to 153.6kbps(MM2),115.2k to1.2Mbps(N920/N320/N425/N1350)
|
|
|
Occupied Bandwidth
|
230kHz/611.2kHz
|
|
|
Hopping Patterns
|
15 per Band,105 total,user selectable
|
|
|
Hopping Channels
|
50 to 112,user selectable
|
|
|
Hopping Bands
|
7,user selectable
|
|
|
Frequency Zones
|
16 Zones
|
|
|
RF Connector
|
MMCX(Straight)
|
|
|
Receiver
|
|
|
|
Sensitivity
|
-108(MM2)/-107(N1350)/-106(N920/N320/N425)dBm @ 115.2 kbps for BER10-4 -103dBm @ 153.6 kbps for BER10-4/-100dBm @ 1.2 Mbps for BER10-4
|
|
|
IF Selectivity
|
40 dB at fc +/-230 kHz
|
|
|
RF Selectivity
|
50 dB at 896 MHz, 935MHz
|
|
|
Dynamic Range
|
+10 dBm 3rd Order Intercept Point at Input Connector
|
|
|
DATA Transmission
|
|
|
|
Error Detection
|
32 bit CRC, Retransmit on error
|
|
|
Data Encryption
|
Proprietary Spread Spectrum Technology
|
|
|
Data Interface
|
1200bps - 230.4kbps
|
|
|
Data Connector
|
Straight 14-pin dual row header 2.0mm spacing
|
|
|
Data Throughput
|
115.2-153.6kbps(MM2),115.2k-1.2Mbps(N920/N320/N425/N1350)
|
|
|
General Information
|
|
|
|
Operating Temperature Range
|
-40℃ to +80℃(-40℉ to +185℉)
|
|
|
Dimensions
|
50.8 L x 36 W x 9.6 H(mm)(MM2),32 L x 51 W x 6.35 H(mm)(N920/N320/N425/N1350)
|
|
|
Weight
|
14g(MM2),18g(N920/N320/N425/N1350)
|
|
|
Humidity
|
0 to 95% non-condensing
|
|
|
Price(The specifications are different, the price is different)
|
|
|
|

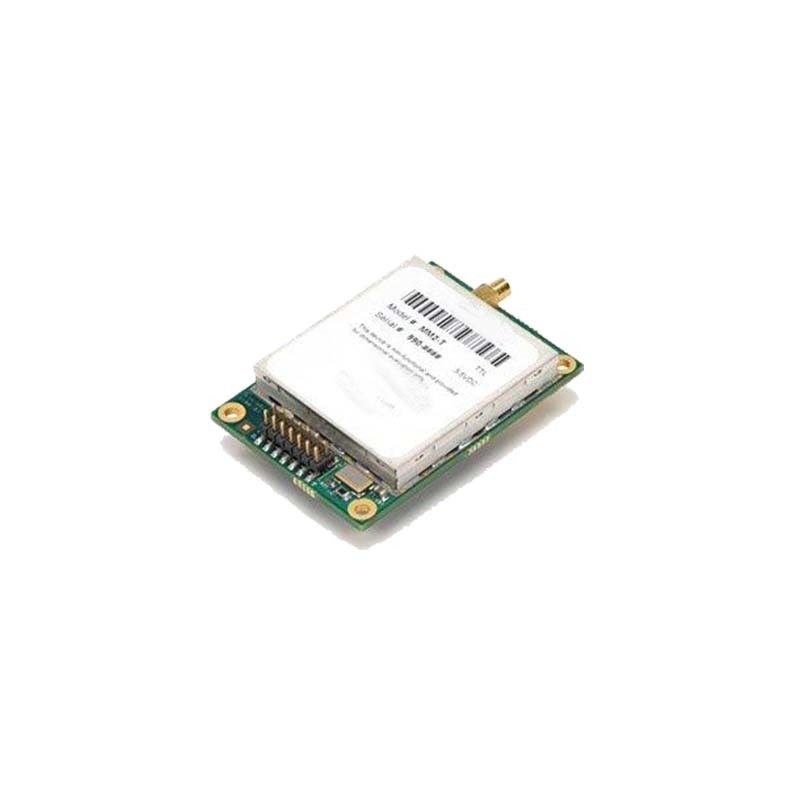

MM2 Module
|
$260/unit
|
|
|

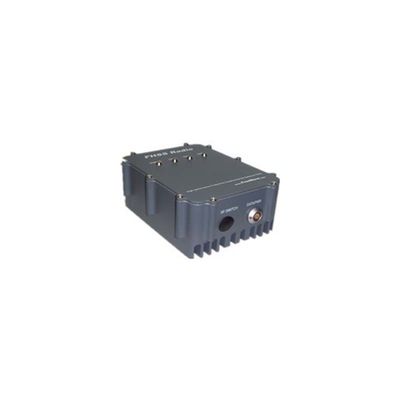

FGR2 Enclosed
|
$370/unit
|
|
