Product Details:
|
| Type: | Module | Tansmission Speed: | 70Mbps |
|---|---|---|---|
| Channel Bandwidth: | 20/40/80 MHz | Transmission Power: | Up To 23 DBm |
| Highlight: | Industrial stamp module,Mesh stamp module,Data Transmission mesh module |
||

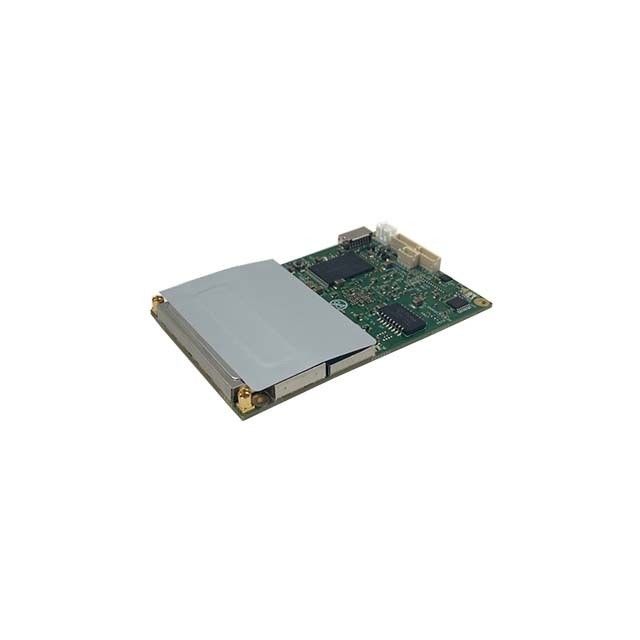

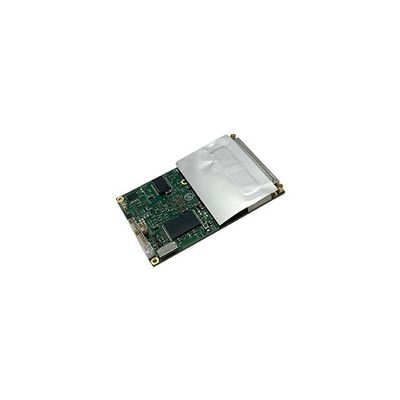

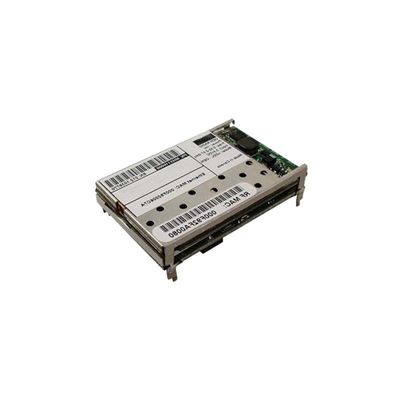

Versatile Miniature Stamp Module for Various Applications and Industries
| Wireless Specifications | |
| Frequency Range | 320-450/450-550/550-700MHz,1000-1300/1300-1500MHz, 1.8-2.2/2.2-2.5GHz,4.4-5.0/5.0-6.0GHz,70M-6GHz Customized |
| Channel Bandwidth | 1.25/2.5/5/10MHz Adjustable |
| Modulation Mode | COFDM, DSSS-CCK/BPSK/QPSK/16QAM/64QAM (Adaptive) |
| Throughput | 70Mbps@10MHz/25Mbps@5MHz/10Mbps@2.5MHz/4Mbps@1.25MHz |
| Sensitivity | -103dBm@5MHz |
| Transmission Distance (line-of-sight) | over 50 km (0.5Watts x 2),over 80 km (1Watts x 2), over 100 km (2Watts x 2), |
| Transmission Power | 0.5Watts x2 |
| 1Watts x2 | |
| 2Watts x2 | |
| Networking Capabilities | |
| Communication Mode | Point-to-point, point-to-multipoint and multipoint-to-multipoint, Reapter |
| Network Topology | Centerless of no-master/slave to MPtoMP |
| Wireless Protocol | HTDMA |
| Network Protocol | IPv6,QoS,DNS,HTTPS,IP,ICMP,NTP,DHCP,VLAN |
| Encryption | DES56/AES128/AES256 |
| Anti-jamming | Intelligent frequency selection/Autonomous frequency hopping |
| Mobility | Support movement speed greater than 200 km/h |
| Transmission Delay | Less than 10 ms |
| System Parameters | |
| Interface | Network port (IP/WiFi), Serial port (232/485/422/TTL,Sbus/USB/Bluetooth),Audio port (MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G LTE/Satellite/Fibe |
| Video Interface | IP,HDMI/SDI,CVBS |
| Local/Remote Management | PC terminal Web browsing, Mobile APP: topology, node and link status, distance monitoring, whole network parameter configuration, software upgrade and other functions |
| System Upgrade | Support one-click upgrade, remote upgrade |
| Positioning Function | GPS/BDS |
| Power Supply | 9-36VDC,0.5Watts×2 |
| 12-36VDC,1Watts×2/2Watts×2 | |
| Power Consumption | Operation 0.5-1A/Standby 0.4-0.6A@12V,0.5Watts×2 |
| Operation 1-2A/Standby 0.5-0.7A@12V,1Watts×2/2Watts×2 | |
| Physical Properties | |
| Operating Temperature | -40℃~ 80℃ |
| Protection Level | IP65,IP66/IP67(Customized) |
| Size/Weight | 8.7×5.4×1.0cm/40g(1Watts×2 Module) |

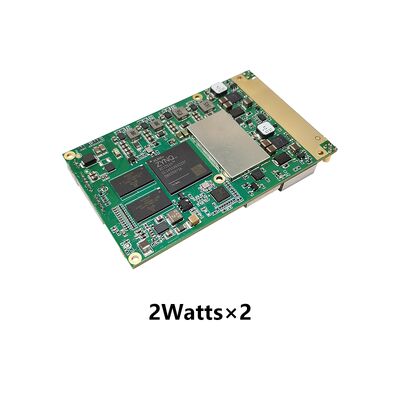

| 9.7×5.4×1.0cm/60g(2Watts×2 Module) | |

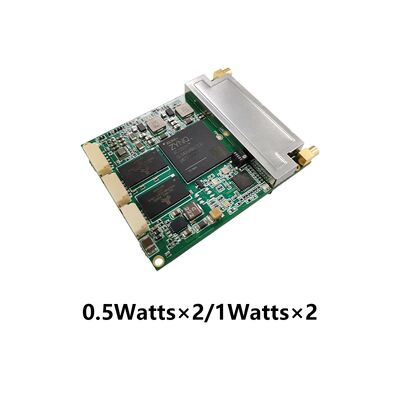

| 5.1×3.2×1.3cm/25g(0.5Watts×2 Miniature Stamp) | |
| Price(The specifications are different, the price is different) | |

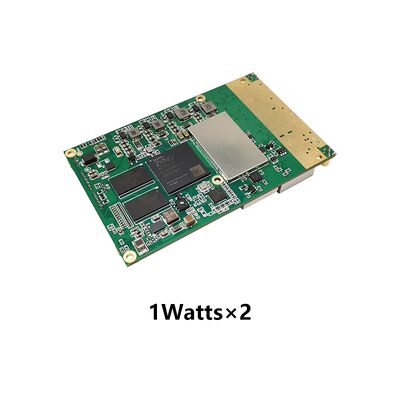

| 1Watts×2 Module | $900/unit |
| 2Watts×2 Module | $1450/unit |
